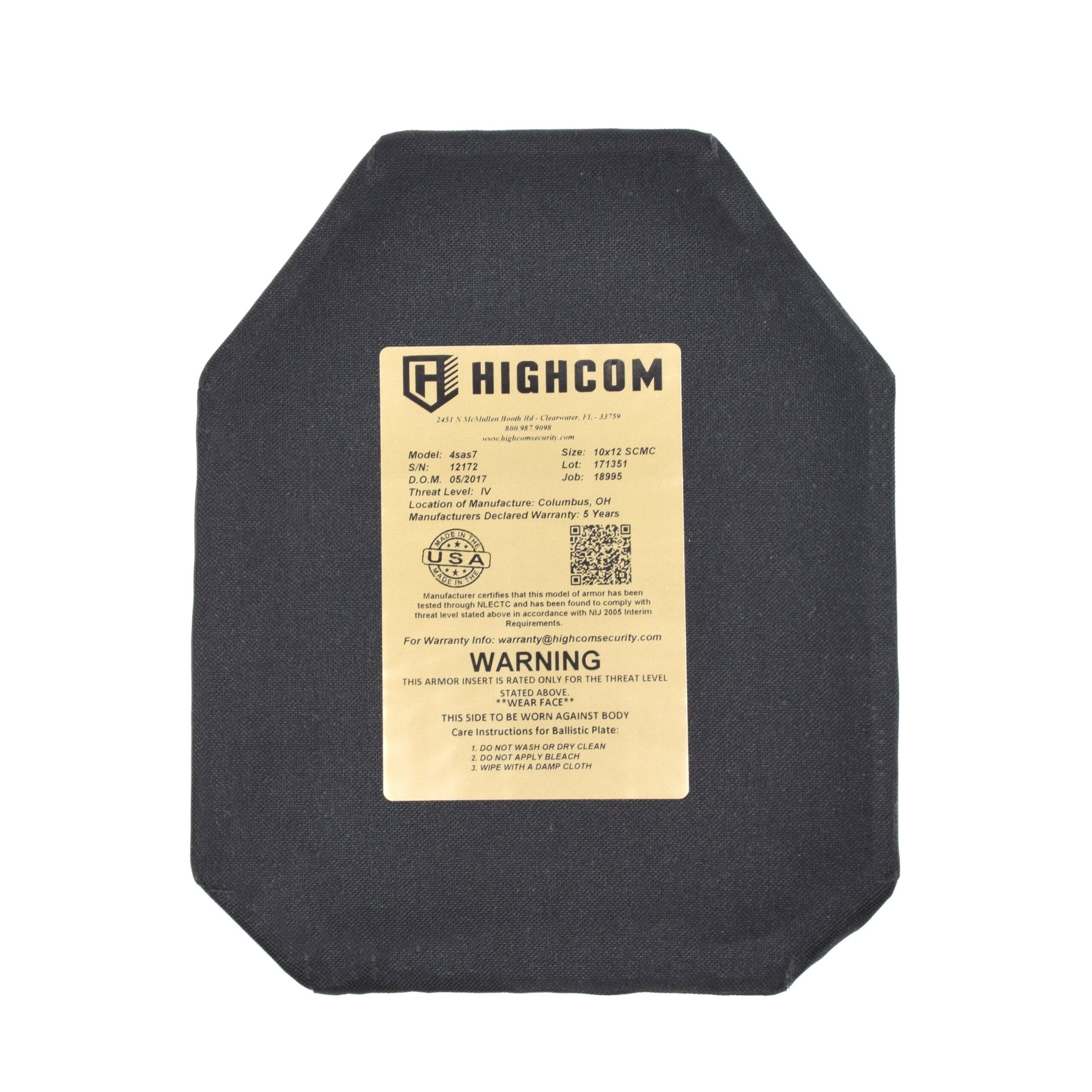

Description
Level IV Stand Alone
SPECIFICATION
- Protection: Level IV Stand Alone Armor Piercing
- NIJ Standard 0101.04 (2005 IR) CERTIFIED: This product is NIJ 0101.04 (2005 IR) compliant “Certified” by NIJ
- DEA: Hard Armor Protocol Compliant
- RST: Rifle Special Threats Validated
- Material: Ceramic strike face composite backing

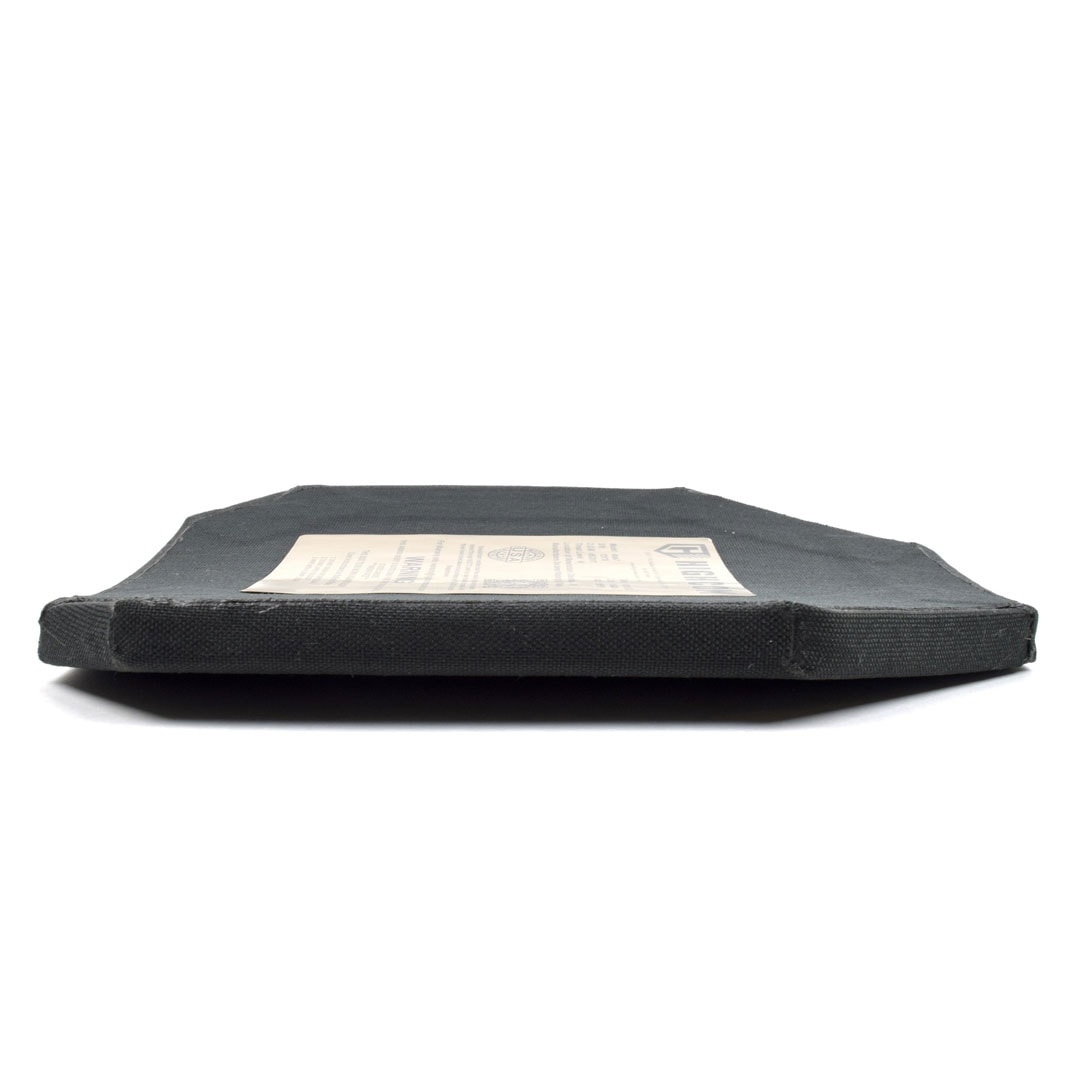

- Thinness: 0.75”
- Exterior Cover: 1000D CORDURA®, Textured Nylon
- Cut: Available in Shooters, Swimmers, SAPI, and Full (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
- Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
SIZE & WEIGHT
| SIZE | CURVATURE | CUT | WEIGHT |
|---|---|---|---|
| 5″ x 7″ | Single Curve | Full Cut | 2.6 lbs / 1.2 kg |
| 5″ x 8″ | Single Curve | Full Cut | 3.0 lbs / 1.3 kg |
| 6″ x 6″ | Single Curve | Full Cut | 2.5 lbs / 1.1 kg |
| 6″ x 8″ | Single Curve | Full Cut | 3.5 lbs / 1.6 kg |
| 8″ x 10″ | Single Curve | Full Cut | 5.8 lbs / 2.6 kg |
| 8″ x 10″ | Single Curve | Shooter Cut | 5.6 lbs / 2.5 kg |

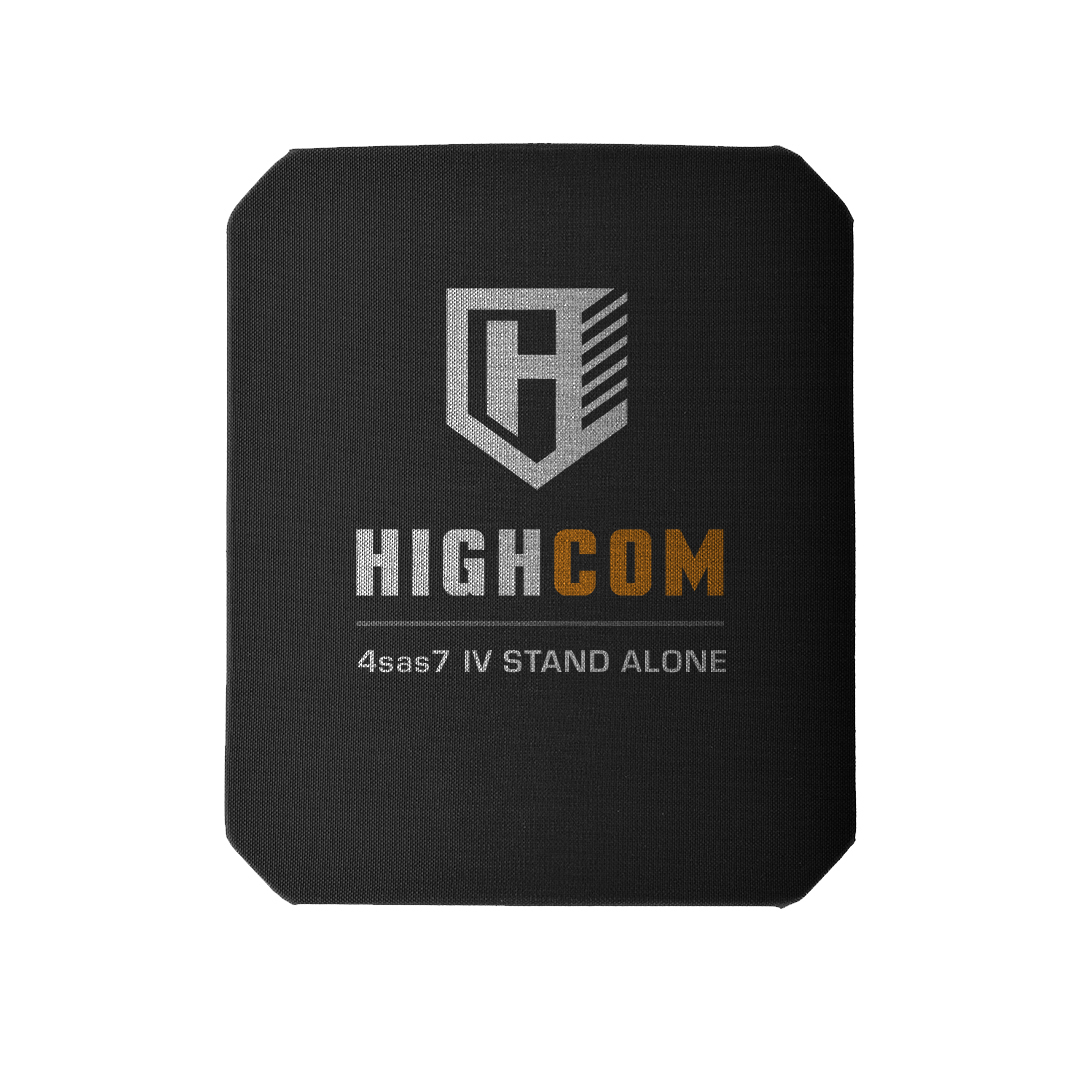

| 10″ x 12″ | Single Curve | Full Cut | 8.6 lbs / 3.9 kg |

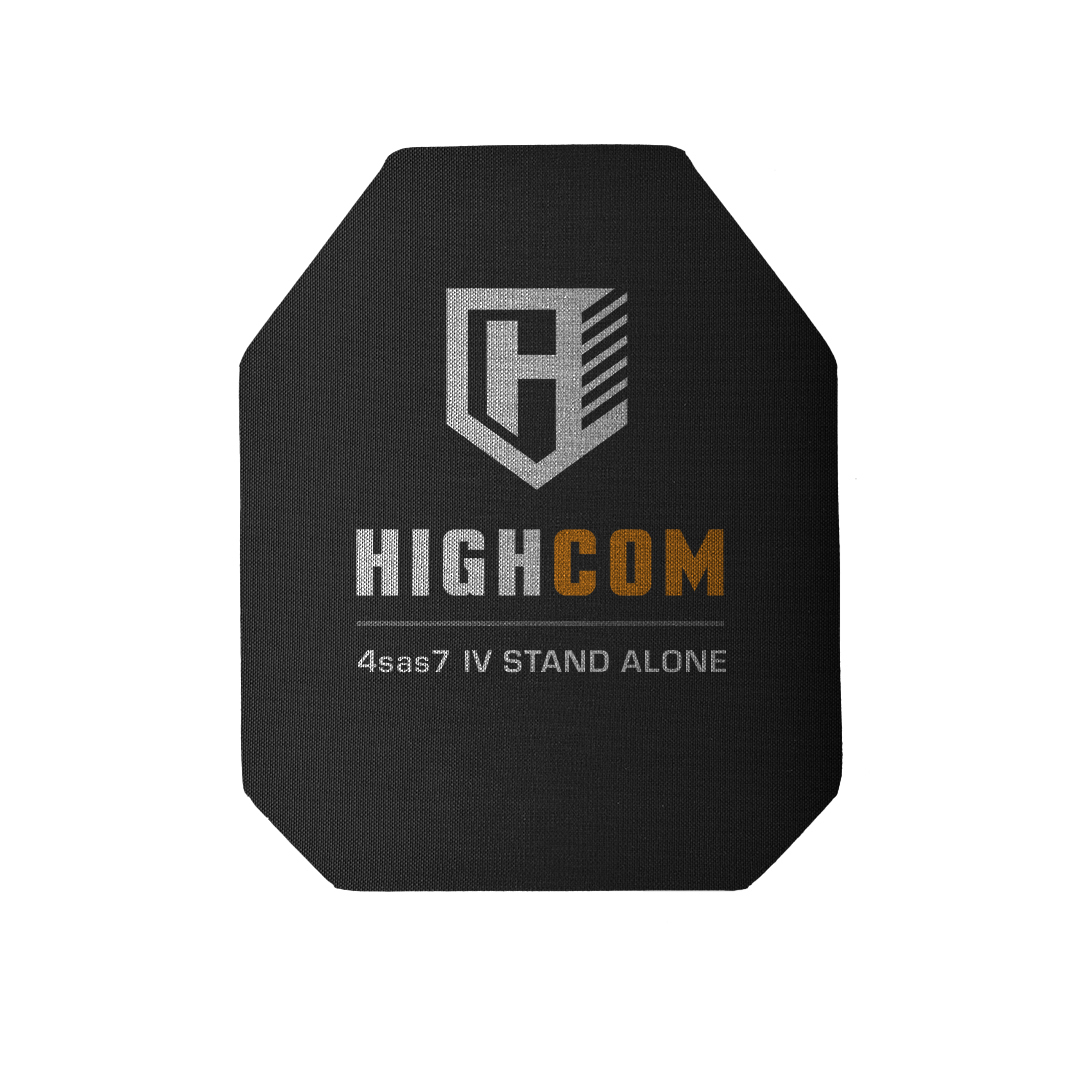

| 10″ x 12″ | Single Curve | Shooter Cut | 7.2 lbs / 3.3 kg |

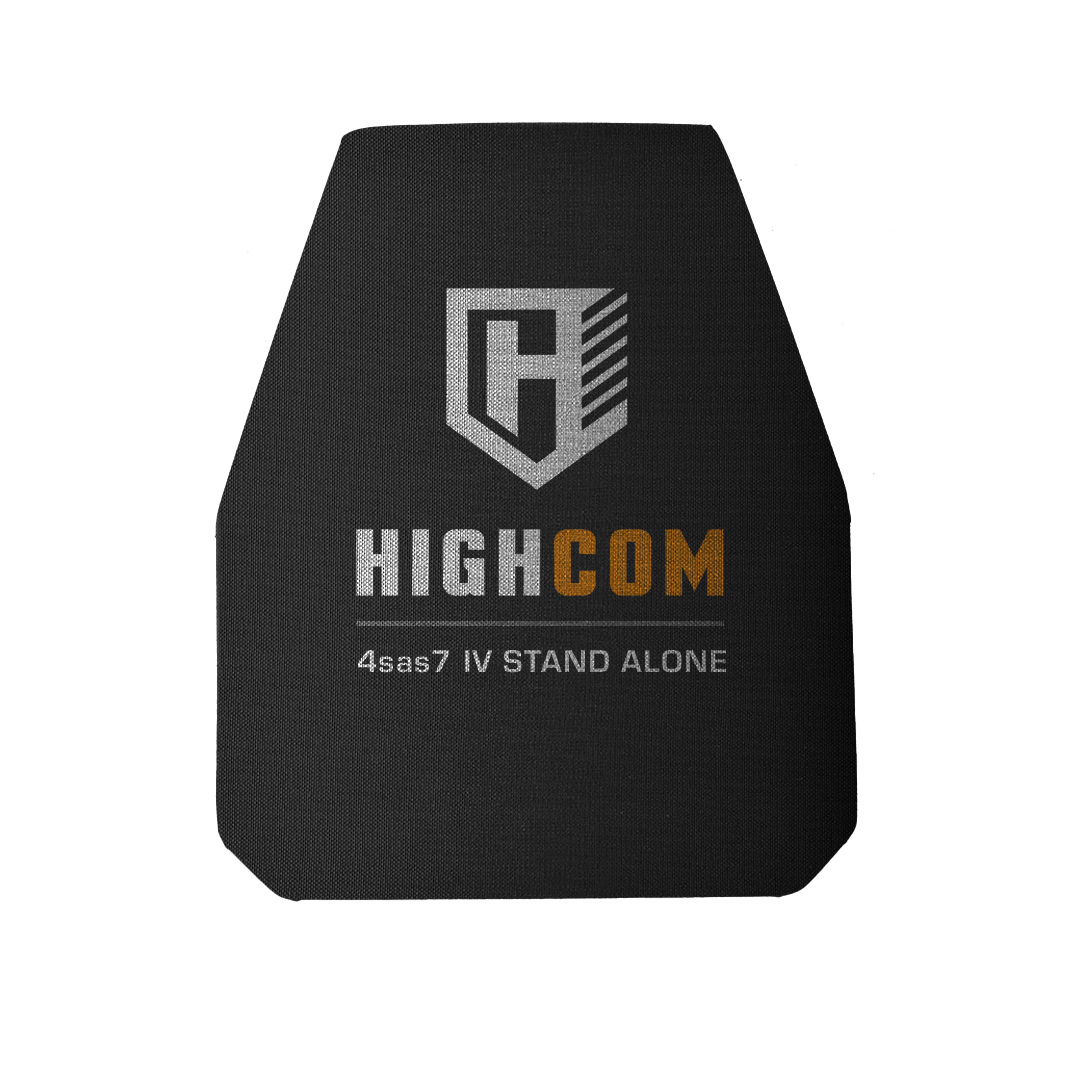

| 10″ x 12″ | Single Curve | Swimmer Cut | 7.6 lbs / 3.4 kg |

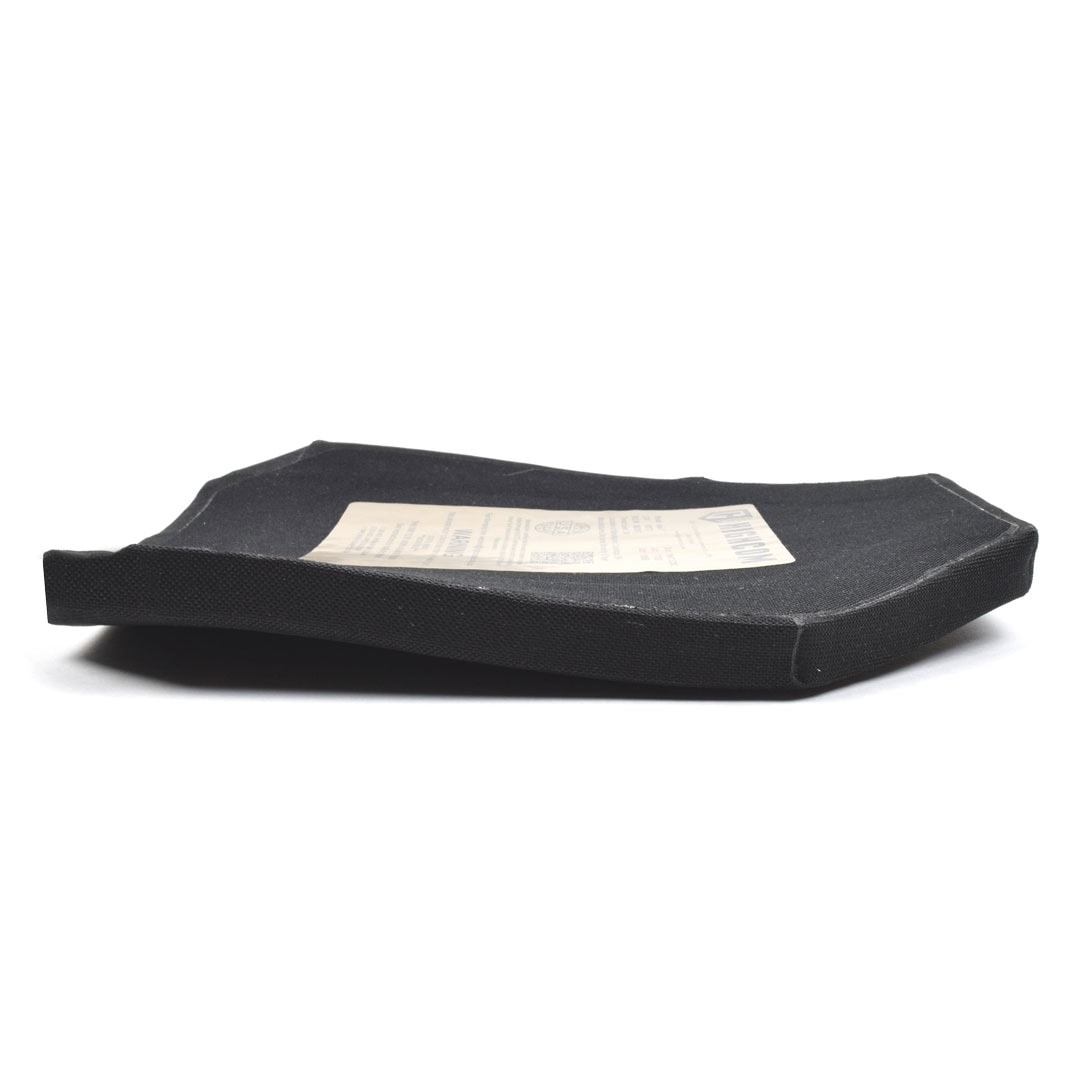

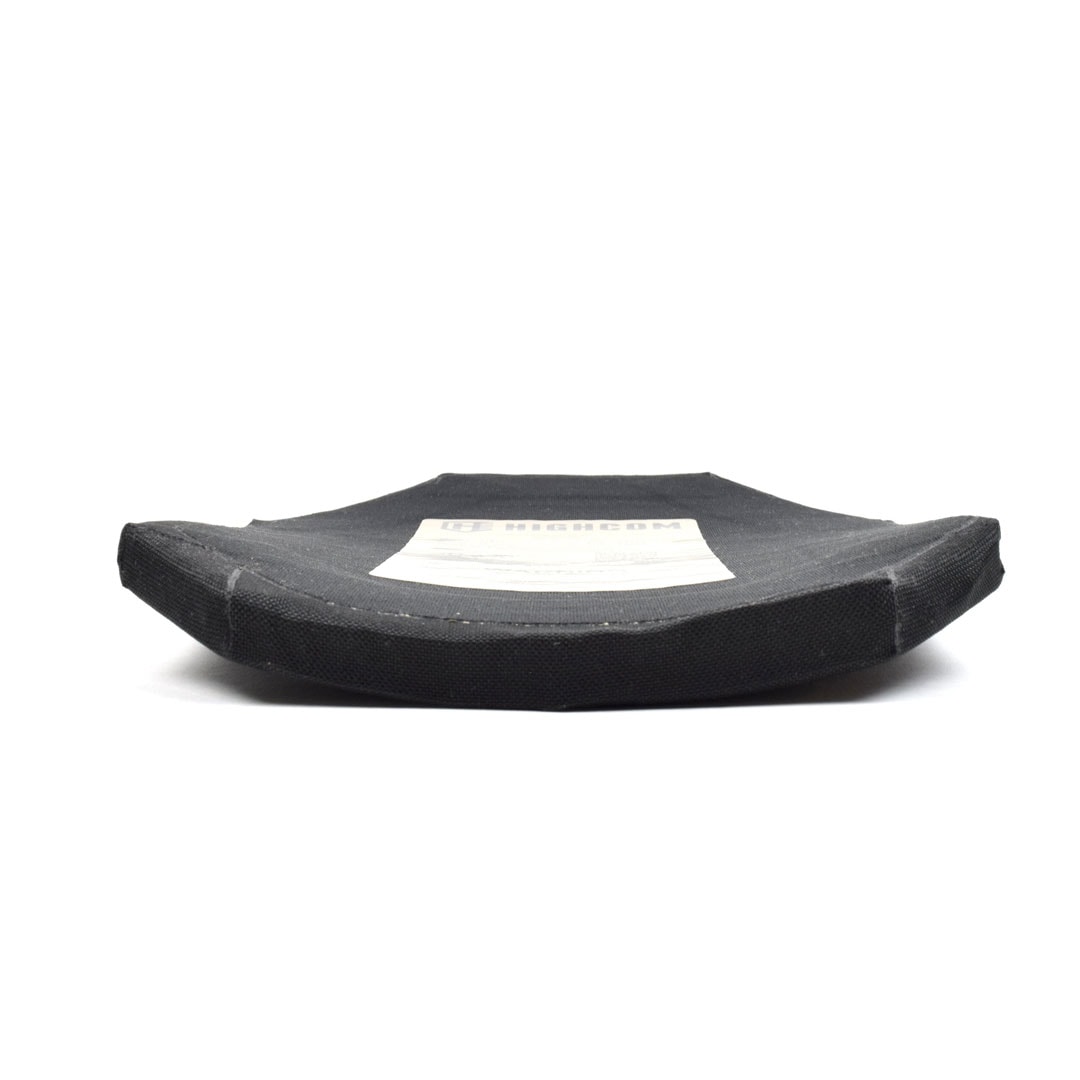

| 10″ x 12″ | Multi Curve | Shooter Cut | 7.2 lbs / 3.3 kg |

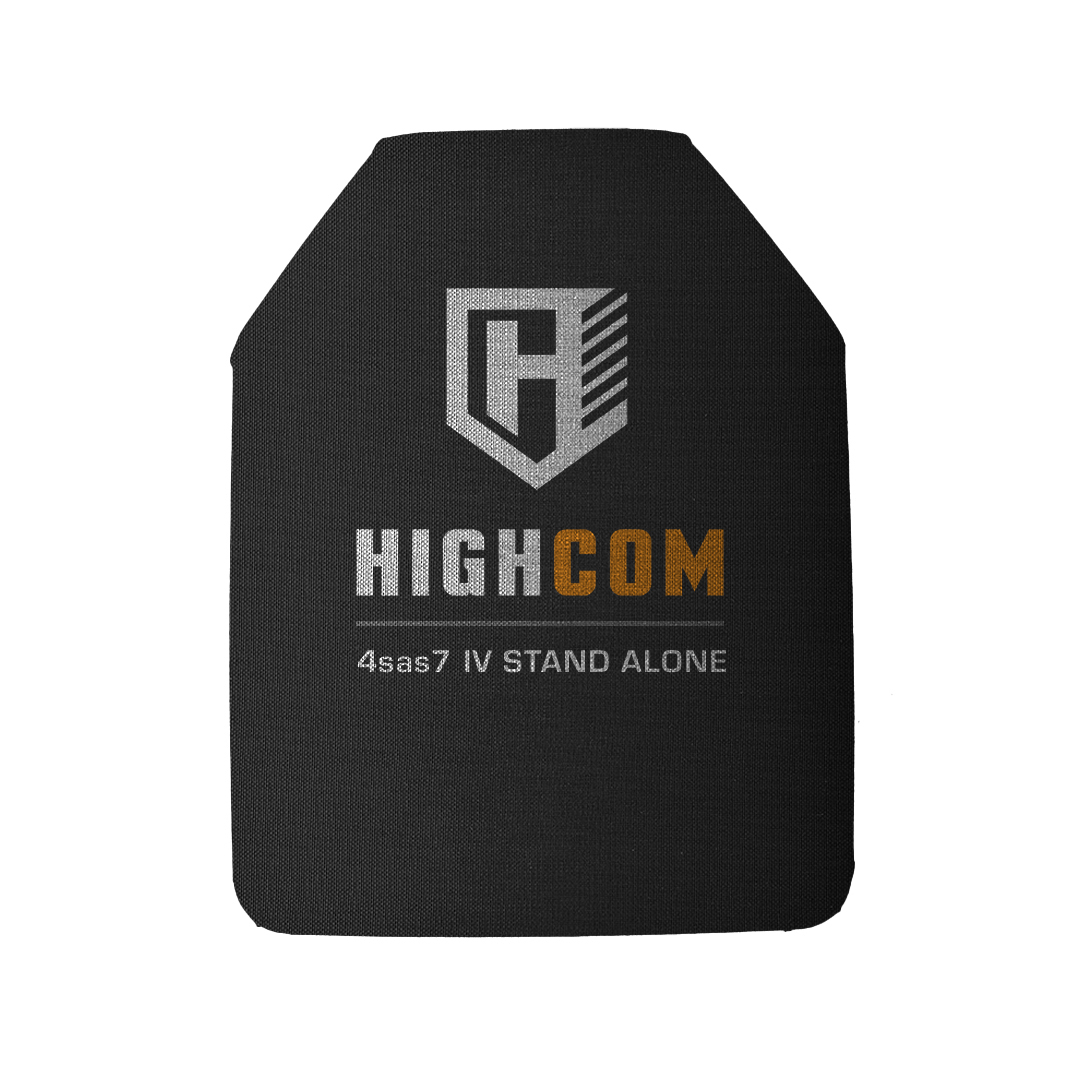

| 7¼” x 11½” | Multi Curve | SAPI | 6 lbs / 2.7 kg |
| 8¾” x 11¾” | Multi Curve | SAPI | 7.5 lbs / 3.4 kg |
| 9½” x 12½” | Multi Curve | SAPI | 8.7 lbs / 3.9 kg |
| 10″ x 13¼” | Multi Curve | SAPI | 10 lbs / 4.5 kg |
| 11″ x 14″ | Multi Curve | SAPI | 11.4 lbs / 5.2 kg |
BALLISTIC ROUNDS TESTED
| STANDARD | WEAPON | PROJECTILE | GR | VEL FT/S | VEL M/S | (+/- ft/s) |
|---|---|---|---|---|---|---|
| NIJ 2005 IR | Rifle | .30 Caliber Armor Piercing (AP) Bullets (M2 AP) | 166 | 2880 | 878 | (+/- 30 fps) |
| DEA 2017 | Rifle | .223 Remington Tactical Bonded Soft Point | 62 | 2600 | 792 | (+/- 50 fps) |
| DEA 2017 | Rifle | 5.56 x 45mm M855 (Green Tip) | 62 | 3100 | 945 | (+/- 50 fps) |
| DEA 2017 | Rifle | 7.62 x 39mm Mild Steel Core | 123 | 2400 | 731 | (+/- 50 fps) |
| DEA 2017 | Rifle | 7.62 mm FMJ, Steel Jacketed Bullets (M80) | 147 | 2750 | 838 | (+/- 50 fps) |
| DEA 2017 | Rifle | .308 Winchester PSPB Core-Lokt Ultra Bonded | 150 | 2600 | 792 | (+/- 50 fps) |
