Description

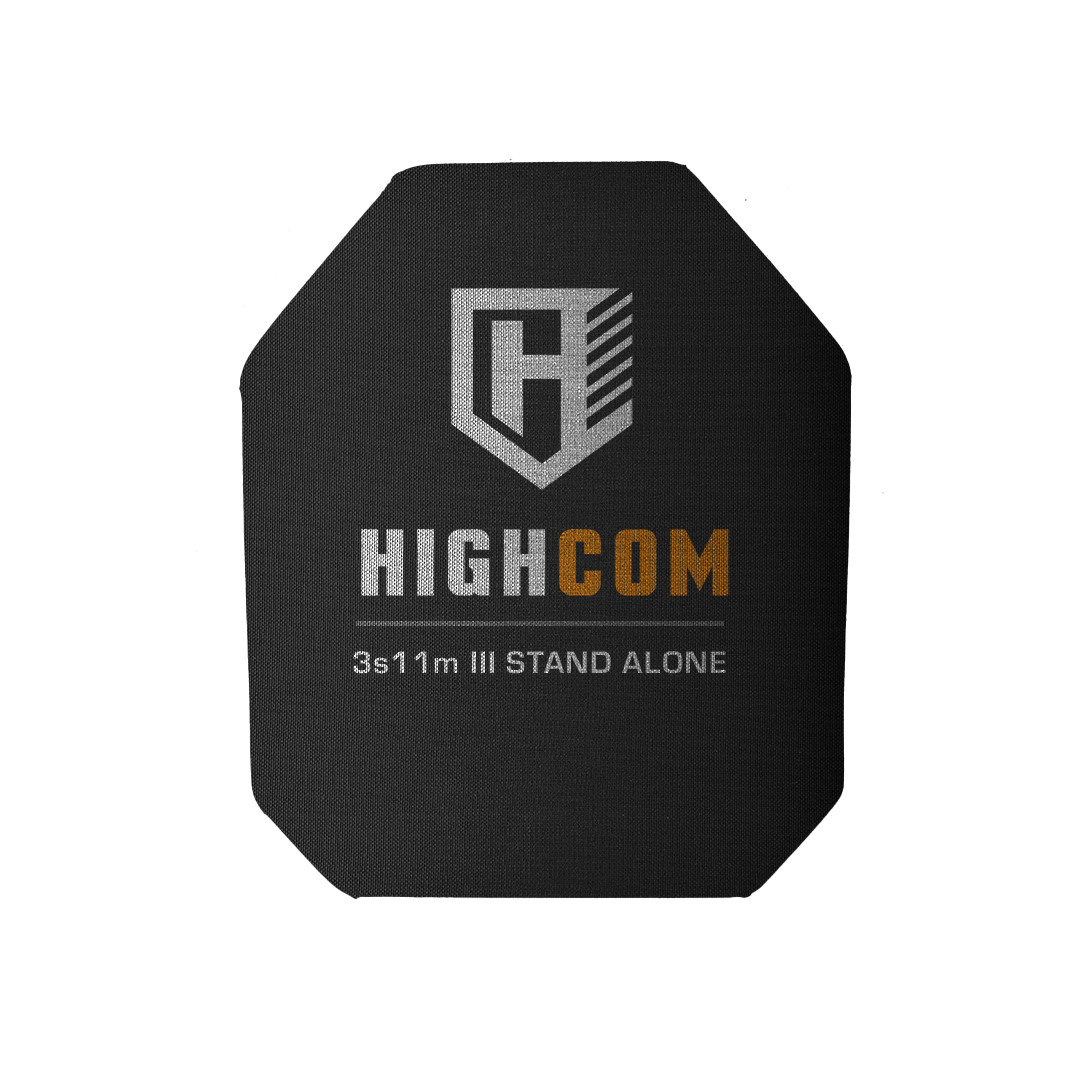

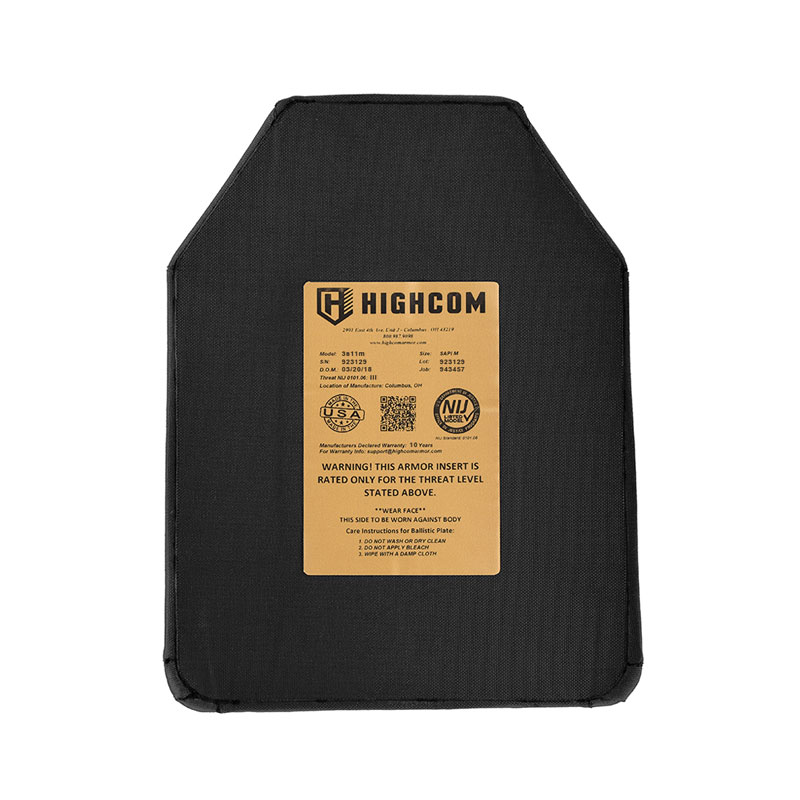

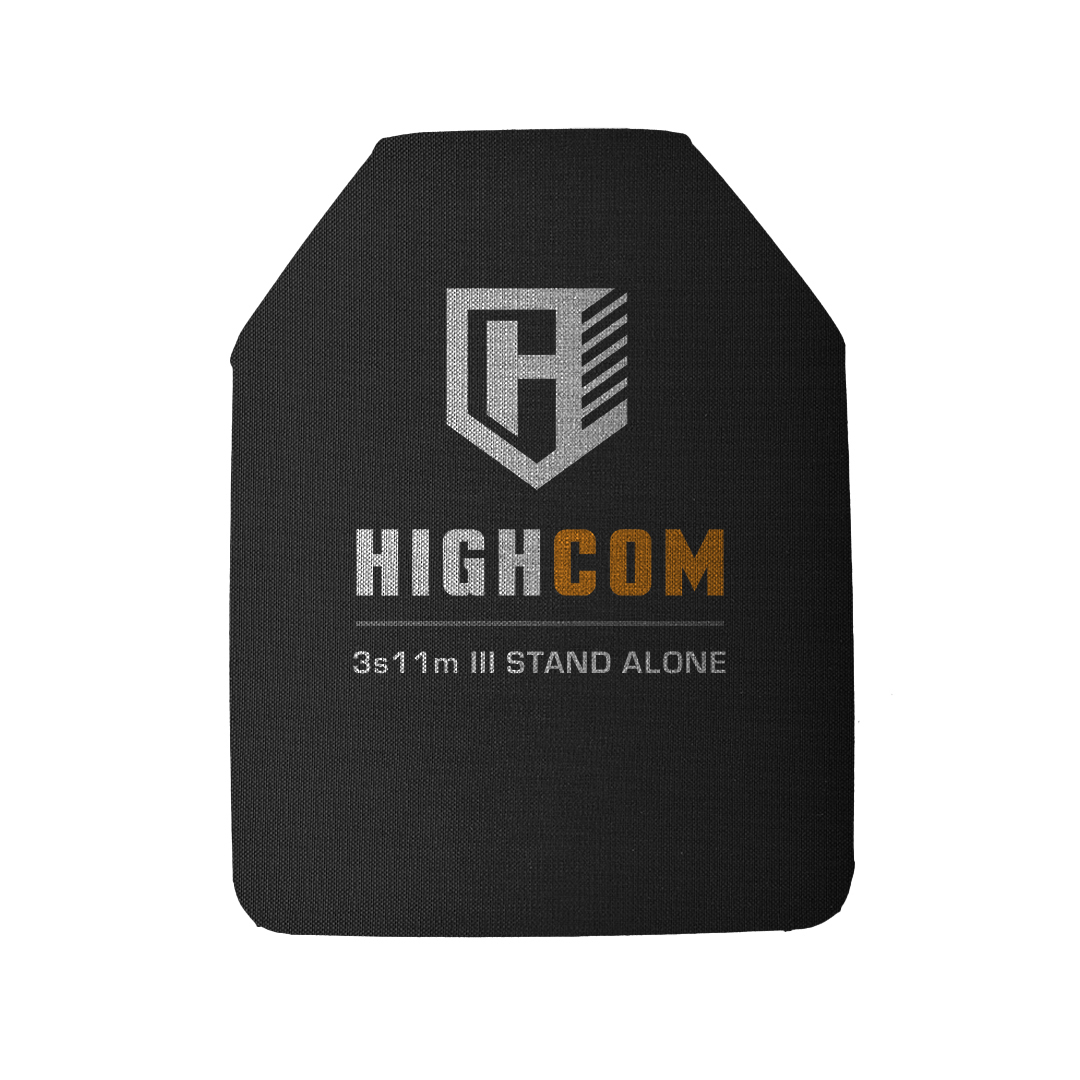

Level III Ultra Lightweight
SPECIFICATION
- Protection: Level III stand alone high velocity rifles
- NIJ Standard 0101.06 CERTIFIED: This product is NIJ 0101.06 compliant “Certified” by NIJ and can be found listed on the NIJ’s CPL
- RST: Rifle Special Threats Validated
- Material: Super Lightweight UHMWPE based hard armor plate
- Positive Buoyancy: Product floats in water
- Exterior Cover: 1000D CORDURA®, Textured Nylon

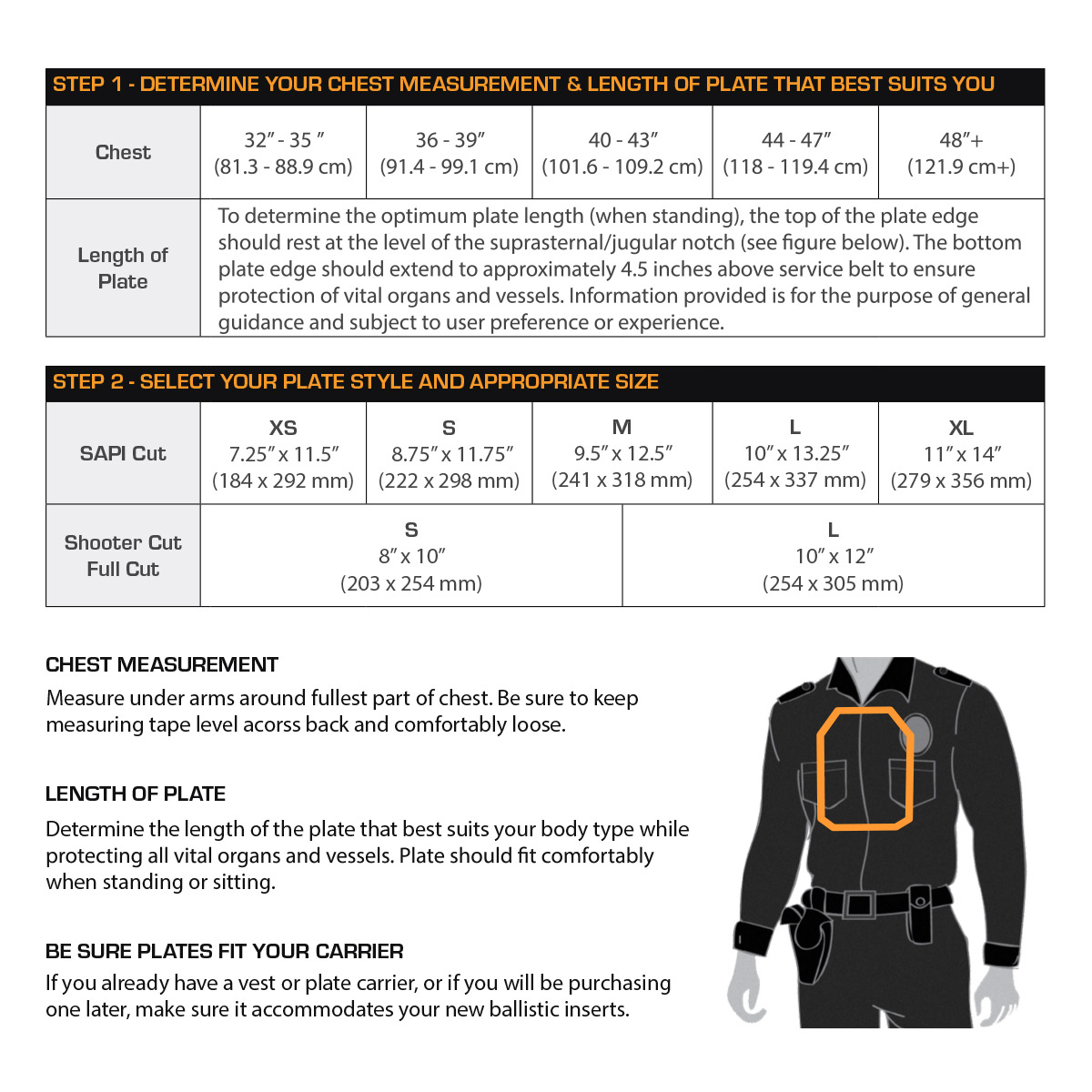

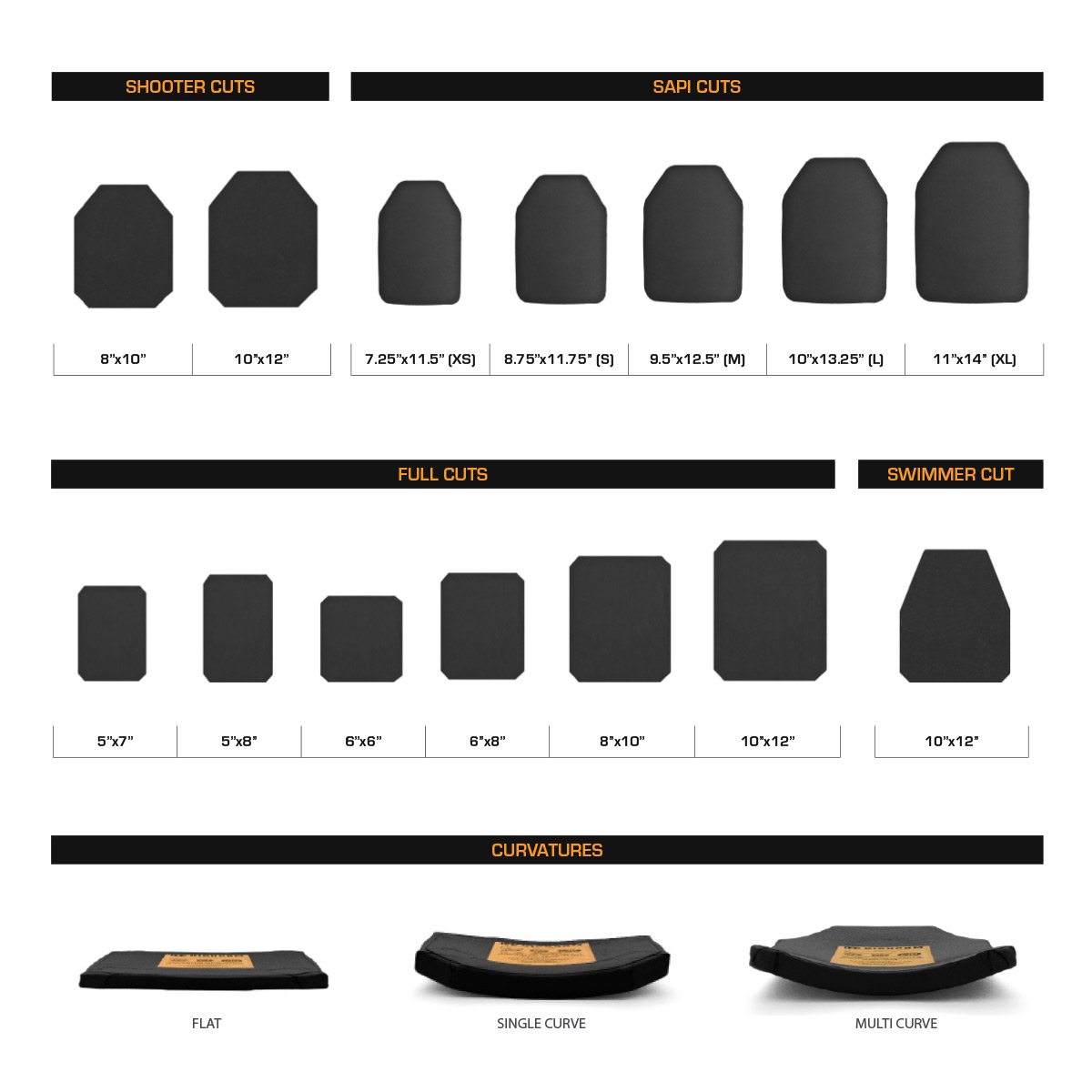

- Cut: Available in Shooters and SAPI (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
- Thinness: 1.25”
- Warranty: 10 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
SIZE & WEIGHT
| Size | Curvature | Cut | Weight |
|---|---|---|---|
| 10 x 12 | Multi Curve | Shooters | 2.9 lbs / 1.3 kg |
| 7.25 x 11.5 | Multi Curve | SAPI (XS) | 2.2 lbs / 1.0 kg |
| 8.75 x 11.75 | Multi Curve | SAPI (S) | 2.8 lbs / 1.3 kg |
| 9.5 x 12.5 | Multi Curve | SAPI (M) | 3.3 lbs / 1.5 kg |
| 10 x 13.25 | Multi Curve | SAPI (L) | 3.8 lbs / 1.7 kg |
| 11 x 14 | Multi Curve | SAPI (XL) | 4.1 lbs / 1.9 kg |
BALLISTIC ROUNDS TESTED
| Standard | WEAPON | Projectile | GR | VEL FT/S | VEL M/S | (+/- FT/S) |
|---|---|---|---|---|---|---|
| NIJ 0101.06 | Rifle | 7.62 mm FMJ, Steel Jacketed Bullets (M80) | 143 | 2780 | 847 | (+/- 30) |
| Special | Rifle | 7.62 x 39mm Mild Steel Core | 123 | 2400 | 731 | (+/- 50) |
| Special | Rifle | 5.56 x 45mm M193 | 55 | 3250 | 991 | (+/- 50) |
Product Resources
Guardian 3s11m Product Spec
External file Download
Guardian Hard Armor Plates Overview
External file Download
Guardian Hard Armor Threat Chart
External file Download
