Description
Rifle Special Threat Plate ICW IIIA Soft Armor
SPECIFICATION
- Protection: Rifle Plate Special Threat and Multi-Hit Capable ICW with Level IIIA Soft Armor
- NIJ Standard 0101.06 TESTED (manufacturer claim; not on the NIJ Compliant Products List): HighCom states this product has been independently tested by an NVLAP-accredited laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0101.06 (modified SAPI)
- Material: Ceramic with UHMWPE backing
- Exterior Cover: 1000D Cordura®, Textured Nylon
- Thinness: 0.55”

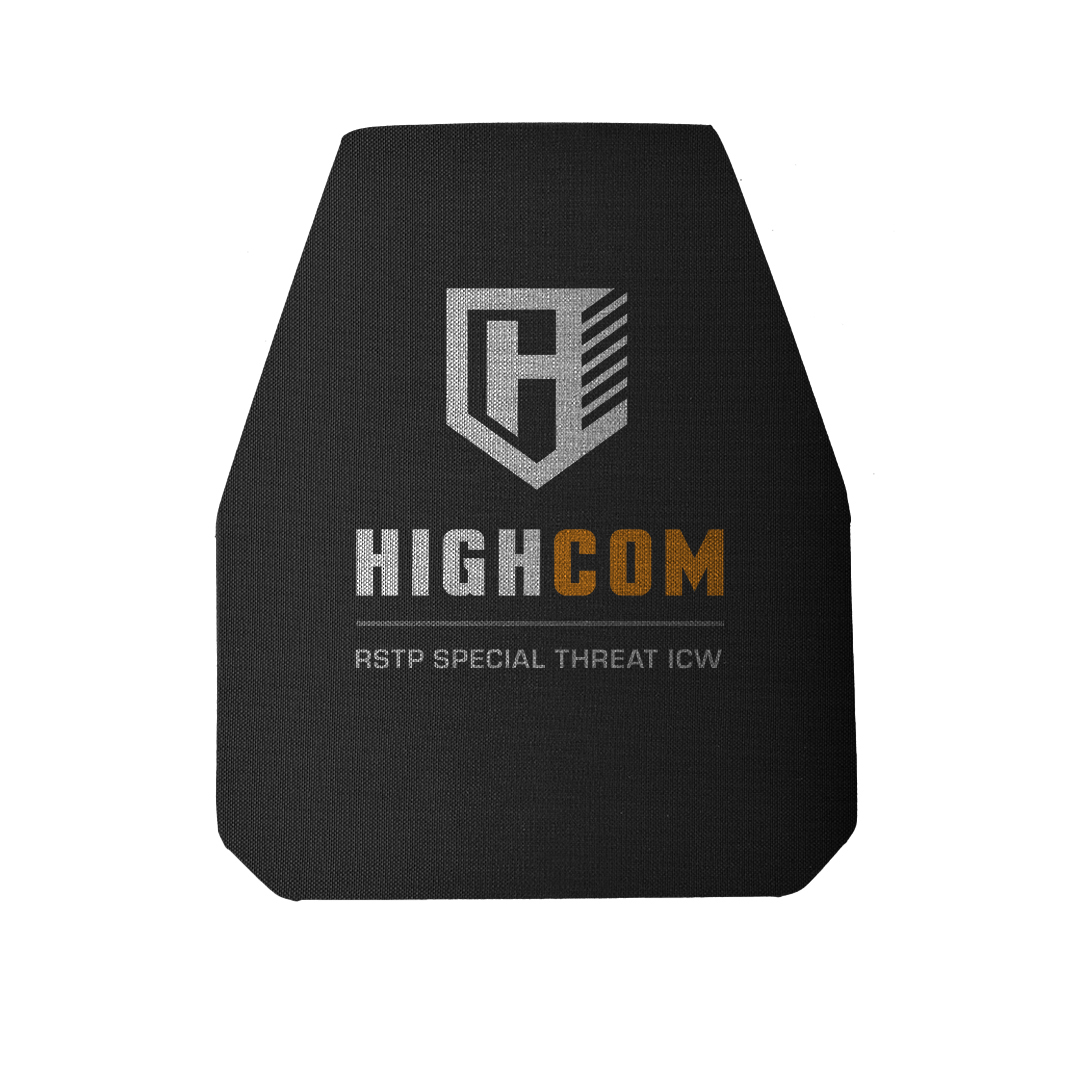

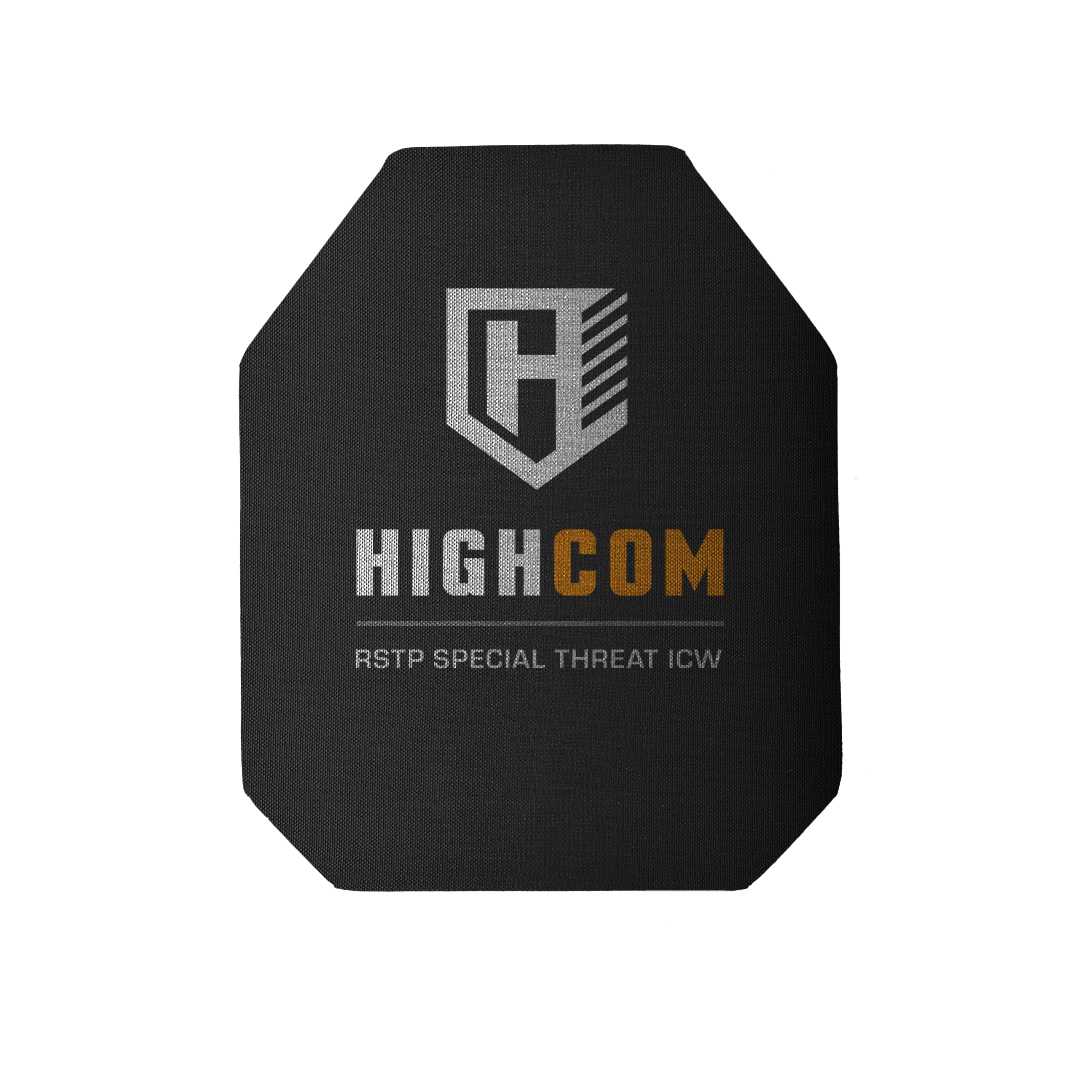

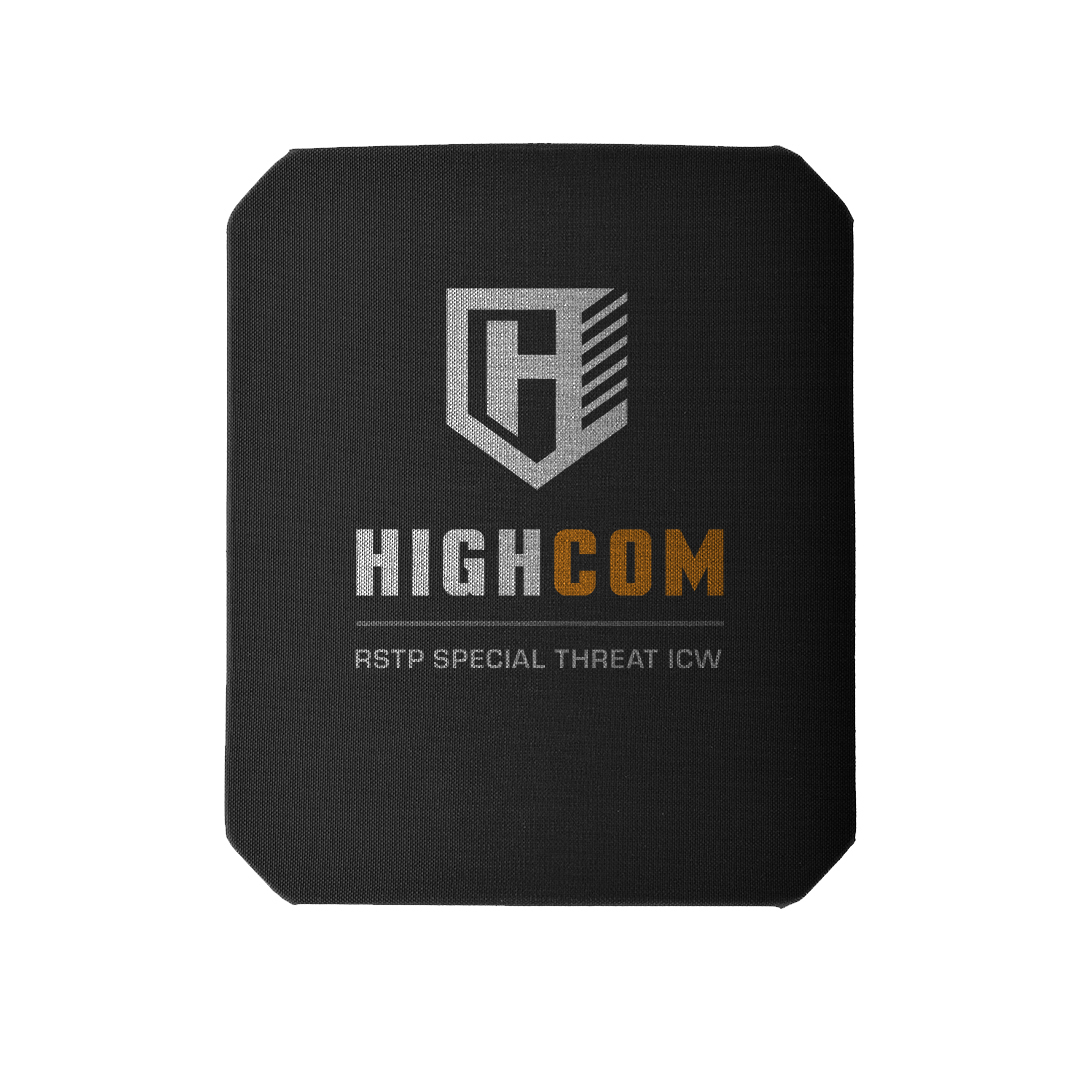

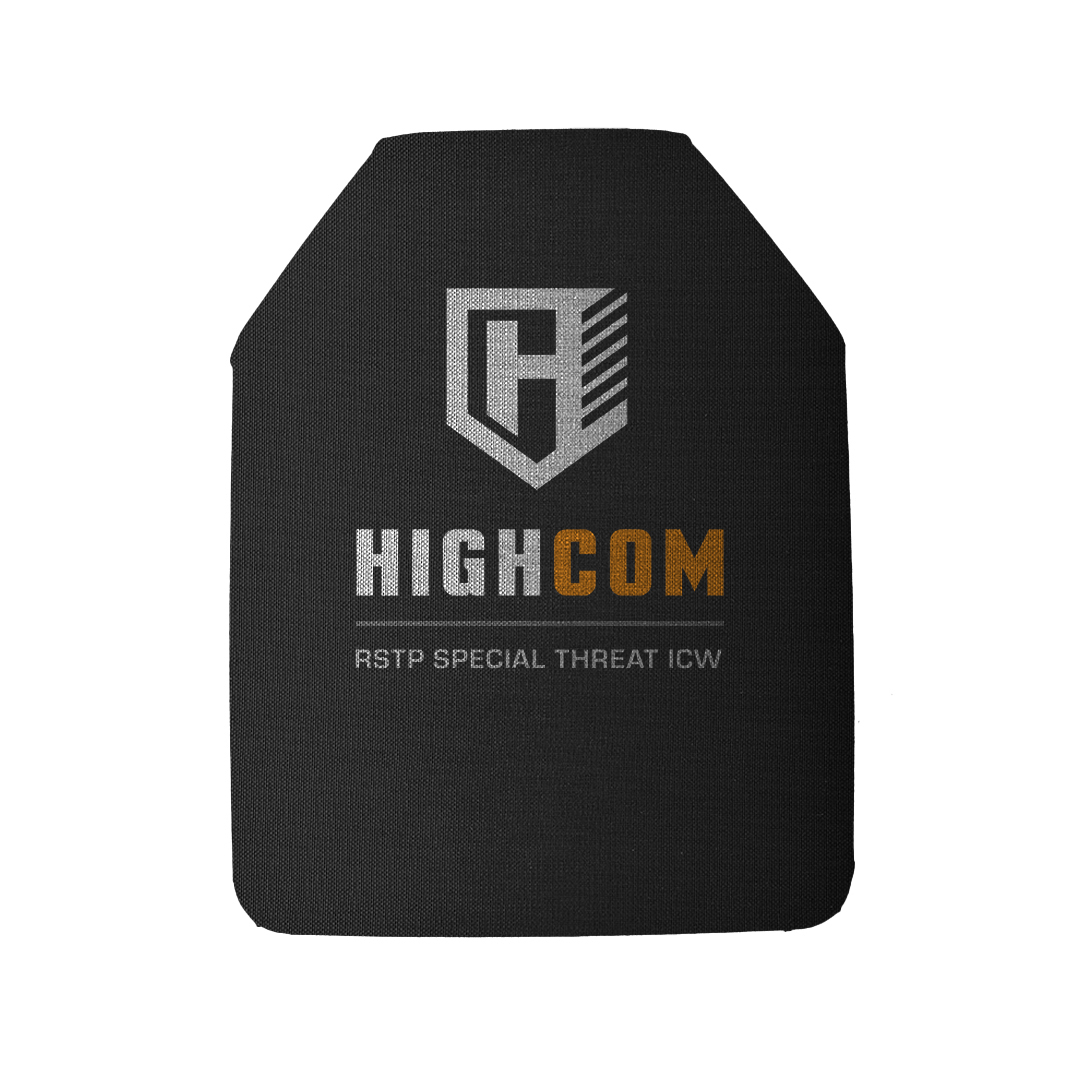

- Cut: Available in Shooters, Swimmers, SAPI, and Full (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
- Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
SIZE & WEIGHT
| Size | Curvature | Cut | Weight (lbs/kg) |
|---|---|---|---|
| 5 x 7 | Single Curve | Full | 1.0 / 0.4 |
| 5 x 8 | Single Curve | Full | 1.2 / 0.5 |
| 6 x 6 | Single Curve | Full | 1.0 / 0.4 |
| 6 x 8 | Single Curve | Full | 1.4 / 0.6 |
| 8 x 10 | Single Curve | Full | 2.3 / 1.0 |
| 8 x 10 | Single Curve | Shooters | 2.3 / 1.0 |
| 10 x 12 | Single Curve | Full | 3.5 / 1.6 |
| 10 x 12 | Single Curve | Shooters | 2.9 / 1.3 |
| 10 x 12 | Single Curve | Swimmers | 3.1 / 1.4 |
| 7.25 x 11.5 | Multi Curve | SAPI (XS) | 2.5 / 1.1 |
| 8.75 x 11.75 | Multi Curve | SAPI (S) | 3.1 / 1.4 |
| 9.5 x 12.5 | Multi Curve | SAPI (M) | 3.6 / 1.6 |
| 10 x 13.25 | Multi Curve | SAPI (L) | 4.2 / 1.9 |
| 11 x 14 | Multi Curve | SAPI (XL) | 4.8 / 2.2 |
BALLISTIC ROUNDS TESTED
| Protection | Standard | Weapon | Projectile | GR | VEL FT/S | VEL M/S | (+/- ft/s) |
|---|---|---|---|---|---|---|---|
| ICW | NIJ 0101.06 | Rifle | 7.62 mm FMJ, Steel Jacketed Bullets (M80) | 147 | 2780 | 847 | (+/- 30 fps) |
| ICW | DEA 2017 | Rifle | 7.62 x 39mm Mild Steel Core | 123 | 2400 | 731 | (+/- 50 fps) |
| ICW | Special | Rifle | 5.56 x 45mm M855 (Green Tip) | 62 | 3100 | 945 | (+/- 50 fps) |
| ICW | Special | Rifle | 5.56 x 45mm M193 | 55 | 3250 | 991 | (+/- 50 fps) |
Product Resources
Guardian RSTP Product Spec
External file Download
Guardian Hard Armor Plates Overview
External file Download
Guardian Hard Armor Threat Chart
External file Download
Questions & Answers
| Size | Curvature | Cut | Weight (lbs/kg) |
|---|---|---|---|
| 5 x 7 | Single Curve | Full | 1.0 / 0.4 |
| 5 x 8 | Single Curve | Full | 1.2 / 0.5 |
| 6 x 6 | Single Curve | Full | 1.0 / 0.4 |
| 6 x 8 | Single Curve | Full | 1.4 / 0.6 |
| 8 x 10 | Single Curve | Full | 2.3 / 1.0 |
| 8 x 10 | Single Curve | Shooters | 2.3 / 1.0 |
| 10 x 12 | Single Curve | Full | 3.5 / 1.6 |
| 10 x 12 | Single Curve | Shooters | 2.9 / 1.3 |
| 10 x 12 | Single Curve | Swimmers | 3.1 / 1.4 |
| 7.25 x 11.5 | Multi Curve | SAPI (XS) | 2.5 / 1.1 |
| 8.75 x 11.75 | Multi Curve | SAPI (S) | 3.1 / 1.4 |
| 9.5 x 12.5 | Multi Curve | SAPI (M) | 3.6 / 1.6 |
| 10 x 13.25 | Multi Curve | SAPI (L) | 4.2 / 1.9 |
| 11 x 14 | Multi Curve | SAPI (XL) | 4.8 / 2.2 |
| Protection | Standard | Weapon | Projectile | GR | VEL FT/S | VEL M/S | (+/- ft/s) |
|---|---|---|---|---|---|---|---|
| ICW | NIJ 0101.06 | Rifle | 7.62 mm FMJ, Steel Jacketed Bullets (M80) | 147 | 2780 | 847 | (+/- 30 fps) |
| ICW | DEA 2017 | Rifle | 7.62 x 39mm Mild Steel Core | 123 | 2400 | 731 | (+/- 50 fps) |
| ICW | Special | Rifle | 5.56 x 45mm M855 (Green Tip) | 62 | 3100 | 945 | (+/- 50 fps) |
| ICW | Special | Rifle | 5.56 x 45mm M193 | 55 | 3250 | 991 | (+/- 50 fps) |
Note: This model is not listed on the NIJ Compliant Products List. Its rating is the manufacturer’s own; see the manufacturer’s documentation for test details.
