Description

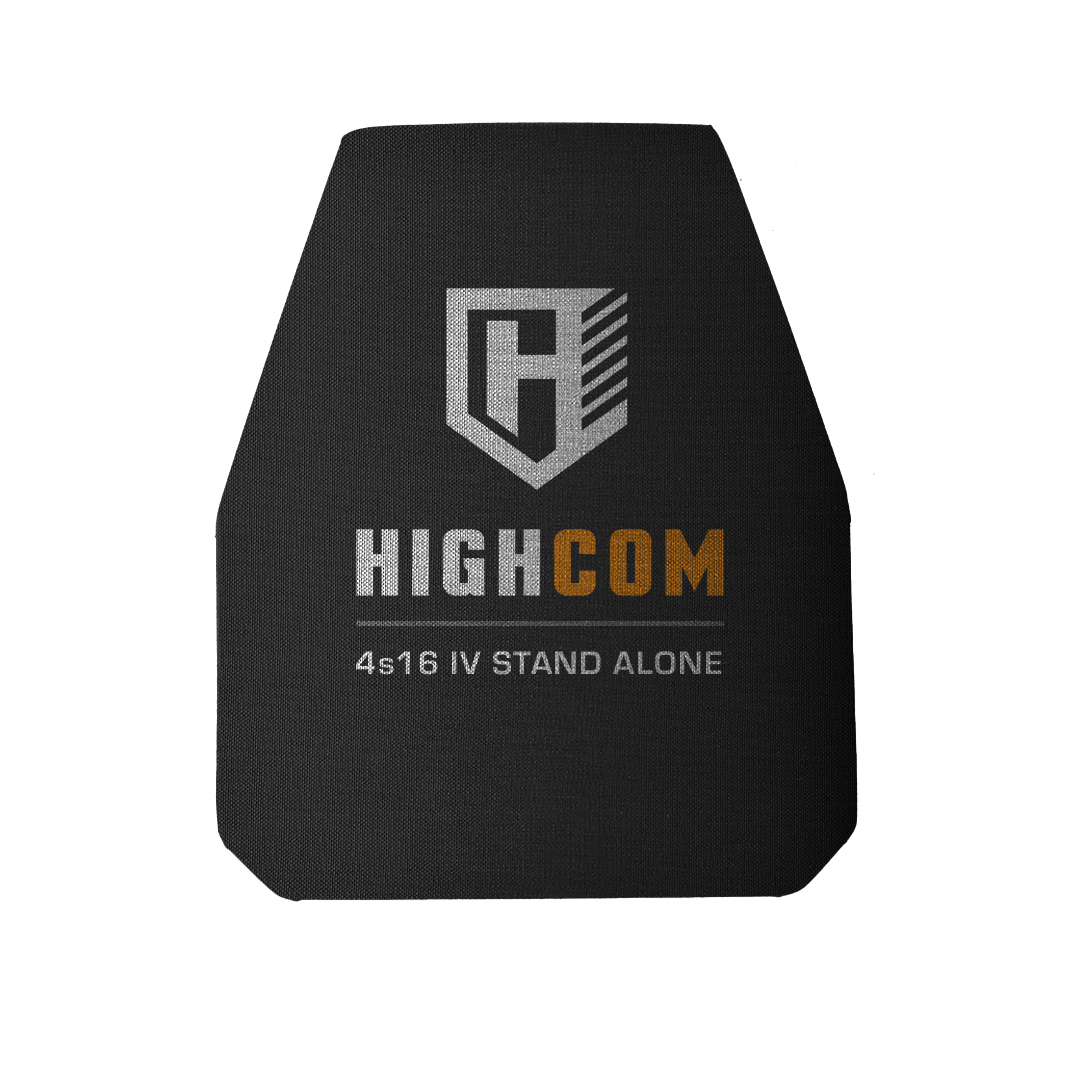

Level IV Stand Alone
SPECIFICATIONS
- Protection: Level IV Stand Alone Armor Piercing
- NIJ Standard 0101.06 TESTED: This product has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0101.06
- RST: Rifle Special Threats Validated
- Material: Ceramic + UHMWPE
- Exterior Cover: 1000D CORDURA®, Textured Nylon
- Thinness: 0.75”
- Cut: Available in Shooters, Swimmers, SAPI, and Full (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
- Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
SIZE & WEIGHT
| Size | Curvature | Cut | Weight |
|---|---|---|---|
| 5 x 7 | Single Curve | Full | 2.31 lbs / 1.05 kg |
| 5 x 8 | Single Curve | Full | 2.65 lbs / 1.20 kg |
| 6 x 6 | Single Curve | Full | 2.20lbs / 1.00 kg |
| 6 x 8 | Single Curve | Full | 3.09 lbs / 1.40 kg |
| 8 x 10 | Single Curve | Full | 5.14 lbs / 2.33 kg |
| 8 x 10 | Single Curve | Shooters | 5.00 lbs / 2.27 kg |
| 10 x 12 | Single Curve | Full | 7.64 lbs / 3.47 kg |
| 10 x 12 | Single Curve | Shooters | 6.46 lbs / 2.93 kg |
| 10 x 12 | Single Curve | Swimmers | 6.61 lbs / 3.00 kg |
| 10 x 12 | Muti Curve | Shooters | 6.46 lbs / 2.93 kg |
| 7¼ x 11½ | Muti Curve | SAPI (XS) | 4.91 lbs / 2.23 kg |
| 8¾ x 11¾ | Muti Curve | SAPI (S) | 6.31 lbs / 2.86 kg |
| 9½ x 12½ | Muti Curve | SAPI (M) | 7.31 lbs / 3.32 kg |
| 10 x 13¼ | Muti Curve | SAPI (L) | 8.38 lbs / 3.80 kg |
| 11 x 14 | Muti Curve | SAPI (XL) | 9.24 lbs / 4.19 kg |
BALLISTIC ROUNDS TESTED
| Standard | Weapon | Projectile | GR | VEL FT/S | VEL M/S | (+/- ft/s) |
|---|---|---|---|---|---|---|
| NIJ 0101.06 | Rifle | .30 Caliber Armor Piercing (AP) Bullets (M2 AP) | 166 | 2880 | 878 | (+/- 30) |
Product Resources
Guardian 4s16 Product Spec
External file Download
Guardian Hard Armor Plates Overview
External file Download
Guardian Hard Armor Threat Chart
External file Download
