Description

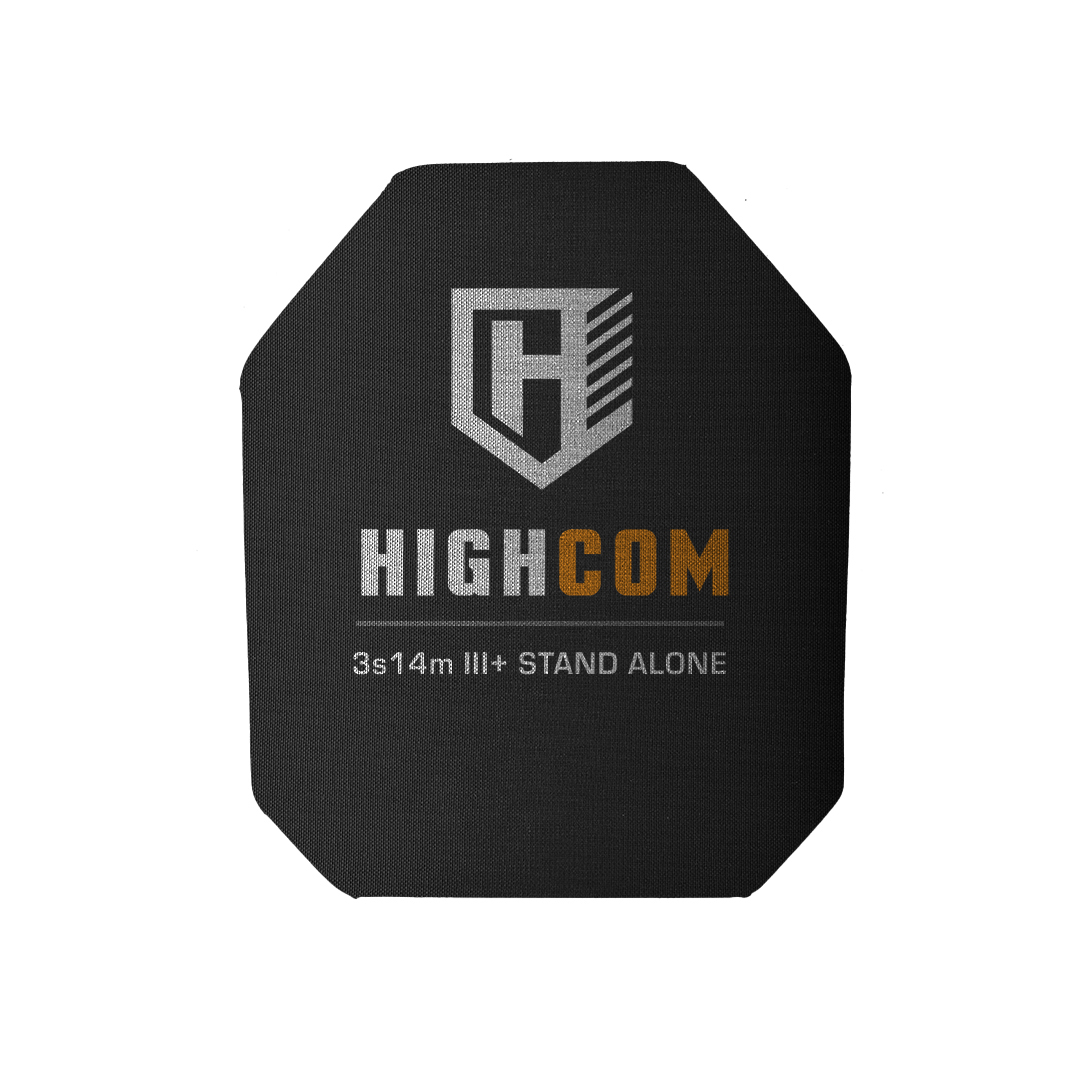

Multi-shot rated for rifle threats, the HighCom 3S14M™ is a lightweight and high-performing ceramic plate with UHMWPE backing. Manufactured using XTclave™ a composite curing and consolidation technology, the 3S14M weighs 3.61 lbs in the 10×12 shooter configuration and is 1.20” thick. Tested to NIJ 0101.06 for Level III threats, the 3S14M fits into the rifle plate pocket of your HighCom plate carrier, tactical vest, or compatible overt carrier.
KEY FEATURES:
- Ultra-Lightweight
- High-performance multi-threat capable
- Enhanced mobility
SPECIFICATIONS
- Protection: Level III+ stand alone high-velocity rifle rounds
- NIJ Standard 0101.06 TESTED: This product has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0101.06
- Process: Made in XTclave™ ultra high-pressure consolidation
- Material: Ceramic with UHMWPE backing
- Areal Density: 5.48 psf, 26.75 kg/m²
- Thinness: 1.20” or 30 mm
- Exterior Cover: 1000D CORDURA®, Textured Nylon
- Cuts: Shooter, SAPI (10”x12” shooter is considered nominal 9.5”x11.5” dimensions)
- Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
SIZE & WEIGHT CHART
| SIZE | CURVE | CUT | WEIGHT |
|---|---|---|---|
| 10”x12” | Multi Curve | Shooters | 3.61 lbs / 1.64 kg |
| 7.25”x11.5” | Multi Curve | SAPI (XS) | 3.01 lbs / 1.36 kg |
| 8.75”x11.75” | Multi Curve | SAPI (S) | 3.73 lbs / 1.69 kg |
| 9.5”x12.5” | Multi Curve | SAPI (M) | 4.32 lbs / 1.96 kg |
| 10”x13.25” | Multi Curve | SAPI (L) | 4.98 lbs / 2.26 kg |
| 11″x14″ | Multi Curve | SAPI (XL) | 5.70 lbs / 2.58 kg |
BALLISTIC ROUNDS TESTED
| STANDARD | WEAPON | PROJECTILE | GR | VEL FT/S | VEL M/S | (+/- FT/S) |
|---|---|---|---|---|---|---|
| NIJ 0101.06 | Rifle | 7.62mm FMJ, Steel Jacketed Bullets (M80) | 147 | 2780 | 847 | (+/- 30) |
| Special | Rifle | 5.56 x 45mm M193 FMJ | 55 | 2985 | 910 | (+/- 50) |
| Special | Rifle | 7.62 x 54R (LPS) | 147 | 2716 | 840 | (+/- 98) |
| Special | Rifle | 7.62 x 39mm MSC (M43) | 123 | 2296 | 700 | (+/- 98) |
| Special | Rifle | 5.56 x 45mm M855 (Green Tip) | 62 | 3018 | 920 | (+/- 98) |
| Special | Rifle | 5.45 x 39mm MSC (7N6) | 53 | 3000 | 915 | (+/- 98) |
