Description
Level III+ (manufacturer designation, not an NIJ level) ICW Level IIIA Soft Armor
SPECIFICATIONS
- Protection: Level III and special threats ICW with level IIIA soft armor
- NIJ Standard 0101.06 TESTED (manufacturer claim; not on the NIJ Compliant Products List): HighCom states this product has been independently tested by an NVLAP-accredited laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0101.06
- Key Advantages: Ultra-low visibility and ultra-lightweight
- Process: Made in XTclave™ ultra-high pressure consolidation
- Material: 100% DSM Dyneema® UHMWPE

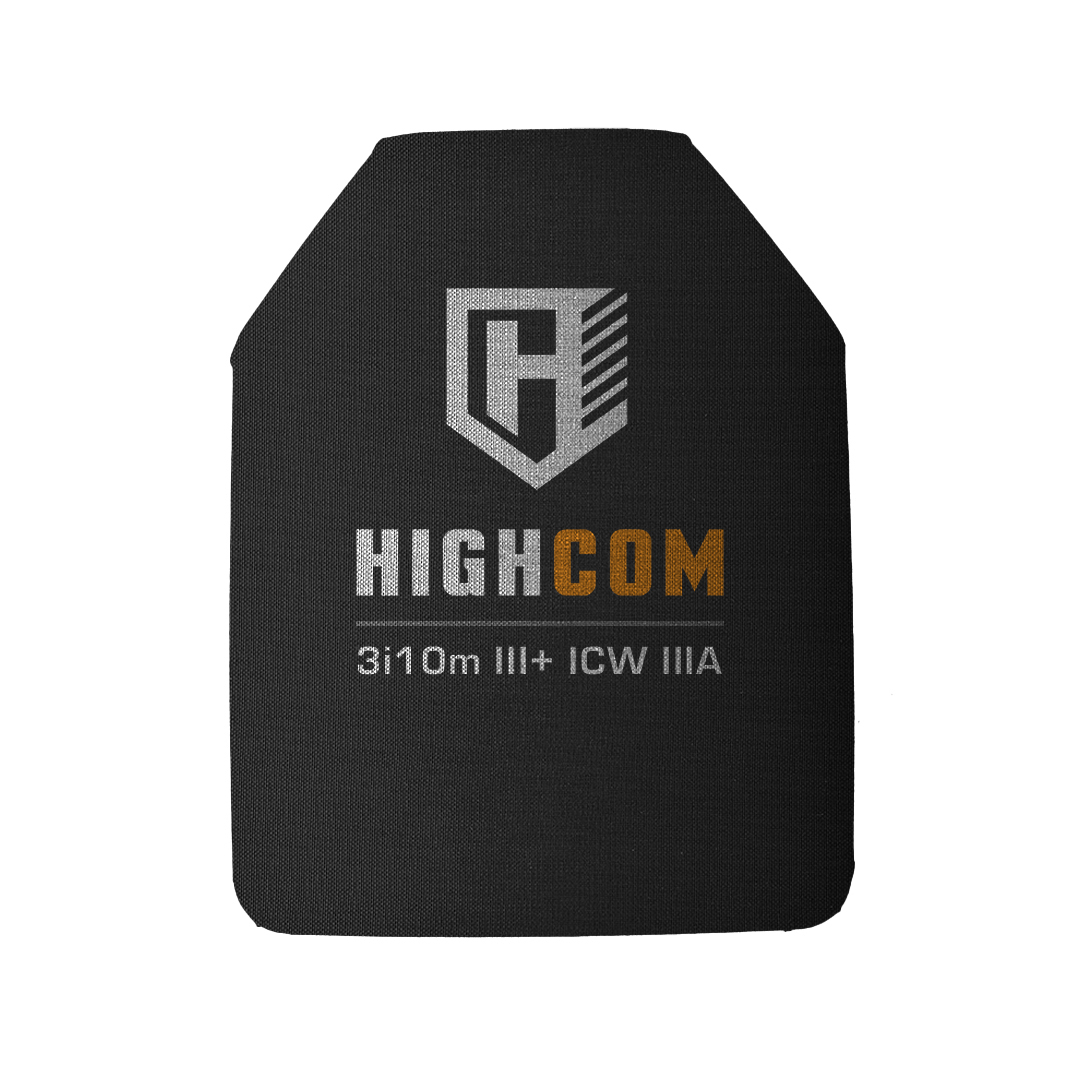

- Exterior Cover: Available in Polyurea Rhino Extreme™ 11-50 anti spall coated system or 1000D Cordura® textured nylon
- Areal Density: 2.47 psf / 12 kg/m²
- Thinness: 0.47” / 12 mm

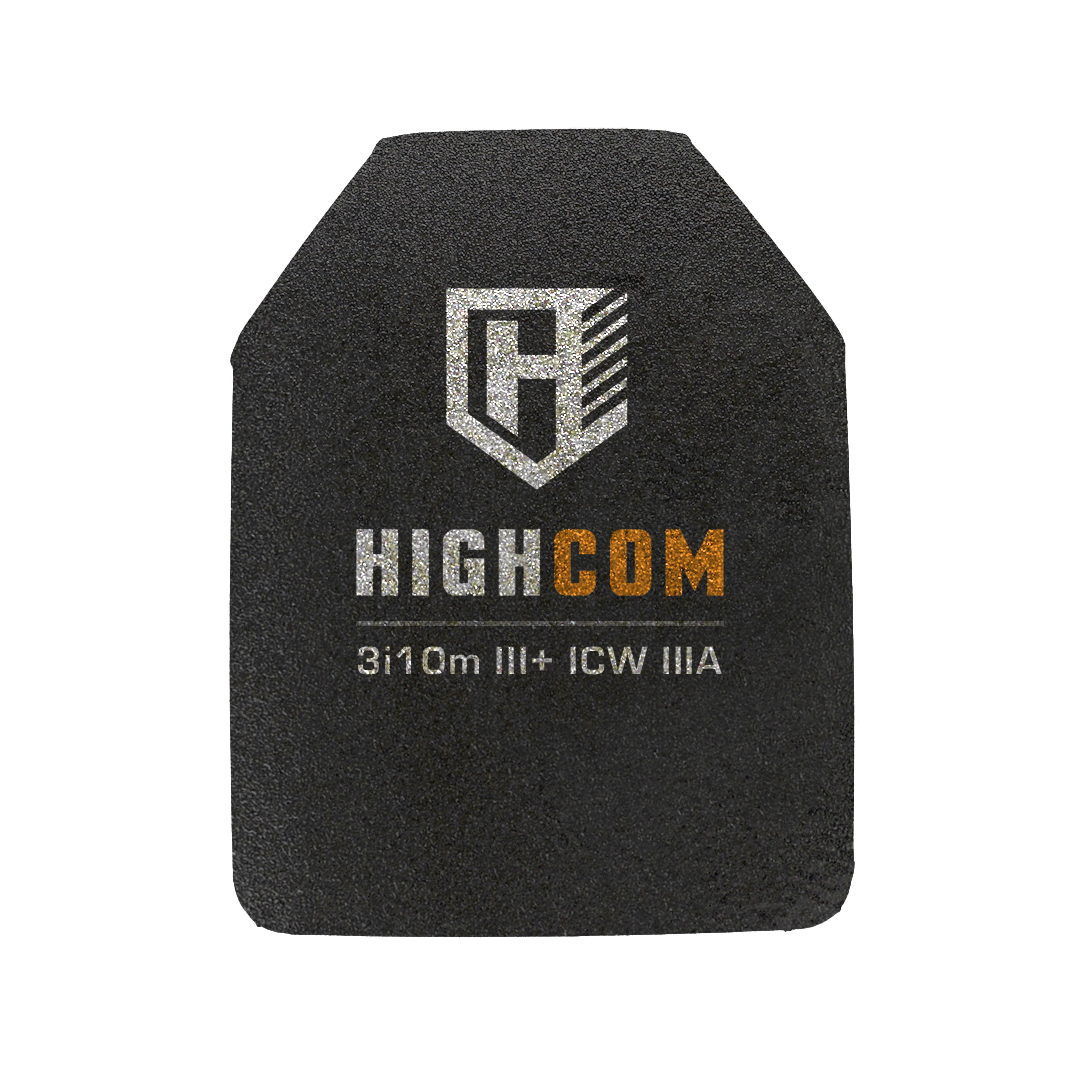

- Cut: Available in SAPI Multi Curve (XS to XL)
- Weight Chart: Reflects Rhino Extreme™ exterior cover, tolerance +/- .15 lbs
- Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
SIZE & WEIGHT
| Size | Curvature | Cut | Weight |
|---|---|---|---|

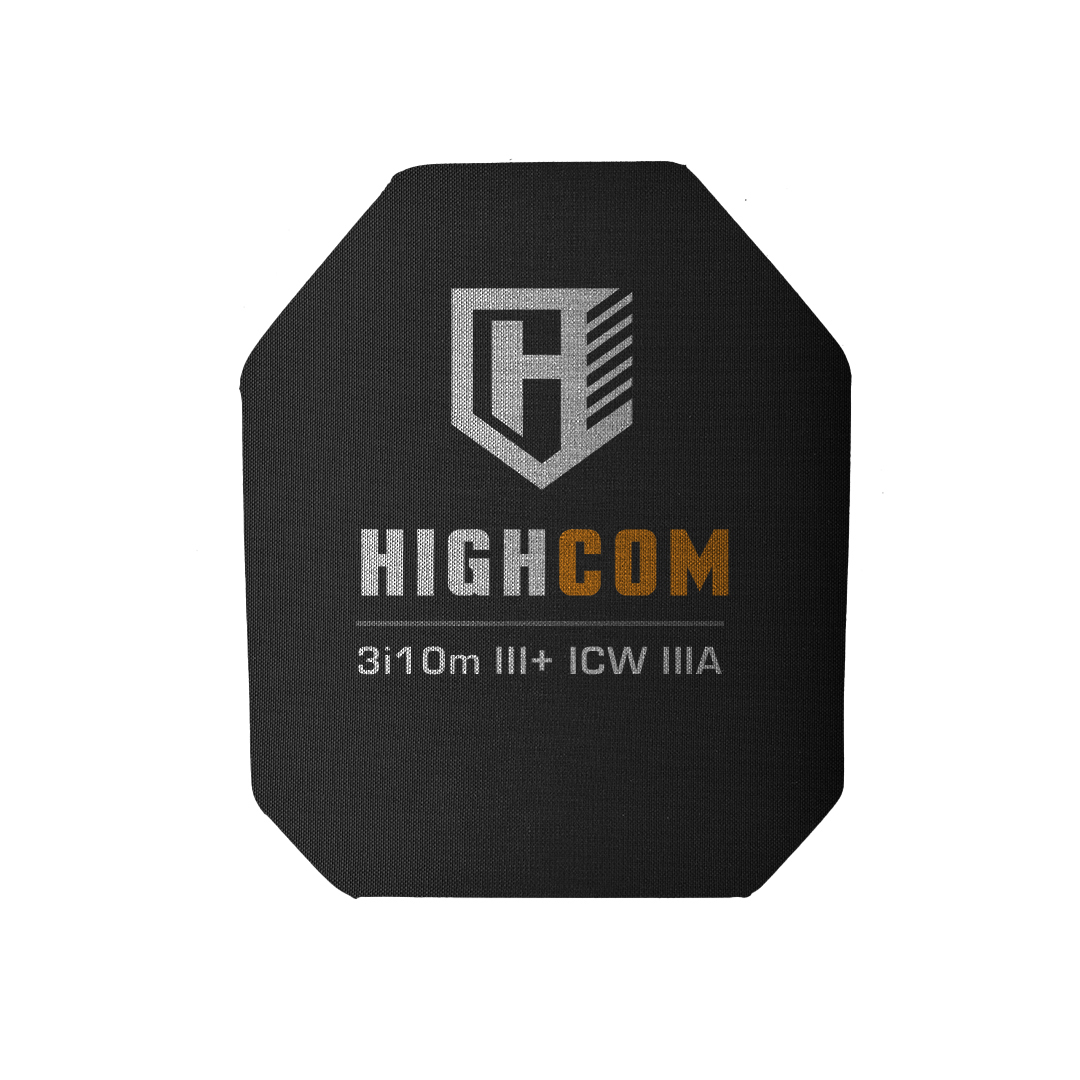

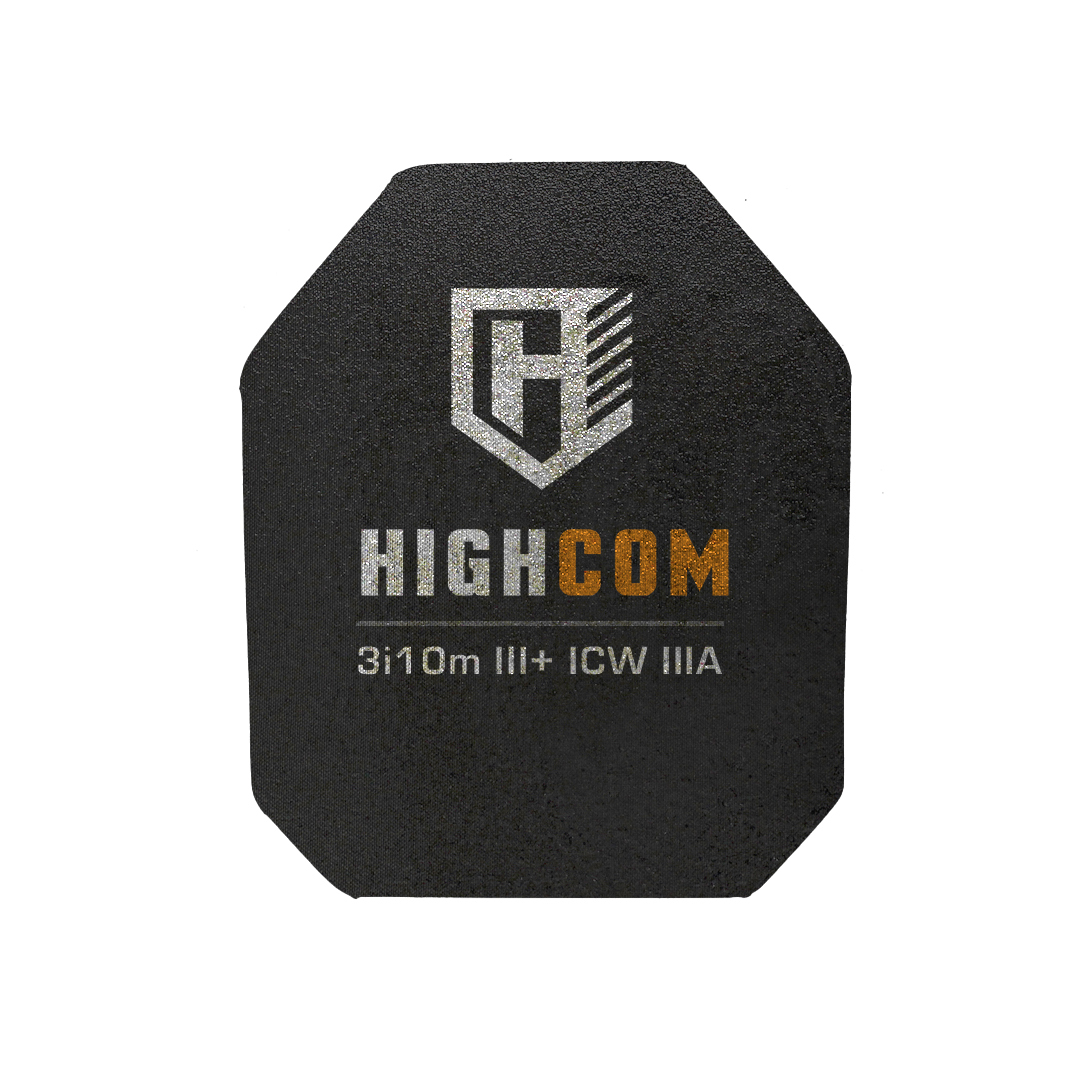

| 10×12 | Multi Curve | Shooters | 1.6 lbs / 0.74 kg |
| 7.25 x 11.5 | Multi Curve | SAPI (XS) | 1.3 lbs / 0.6 kg |
| 8.75 x 11.75 | Multi Curve | SAPI (S) | 1.6 lbs / 0.74 kg |
| 9.5 x 12.5 | Multi Curve | SAPI (M) | 1.9 lbs / 0.86 kg |
| 10 x 13.25 | Multi Curve | SAPI (L) | 2.2 lbs / 0.99 kg |
| 11 x 14 | Multi Curve | SAPI (XL) | 2.5 lbs / 1.14 kg |
BALLISTIC ROUNDS TESTED
| Protection | Standard | WEAPON | Projectile | GR | VEL FT/S | VEL M/S | (+/- FT/S) |
|---|---|---|---|---|---|---|---|
| ICW | NIJ 0101.06 | Rifle | 7.62 mm FMJ, Steel Jacketed Bullets (M80) | 143 | 2780 | 847 | (+/- 30) |
| ICW | Special | Rifle | 7.62 x 39mm Mild Steel Core | 123 | 2400 | 731 | (+/- 50) |
| ICW | Special | Rifle | 5.56 x 45mm M193 | 55 | 3250 | 991 | (+/- 50) |
