Description
Rifle Special Threat Plate | Stand Alone
SPECIFICATION
- Protection: Rifle Plate Special Threat and Multi-Hit Capable Stand Alone
- NIJ Standard 0101.06 TESTED: This product has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0101.06 (modified SAPI)
- Material: Ceramic with UHMWPE backing
- Thinness: 0.90”
- Exterior Cover: 1000D Cordura®, Textured Nylon

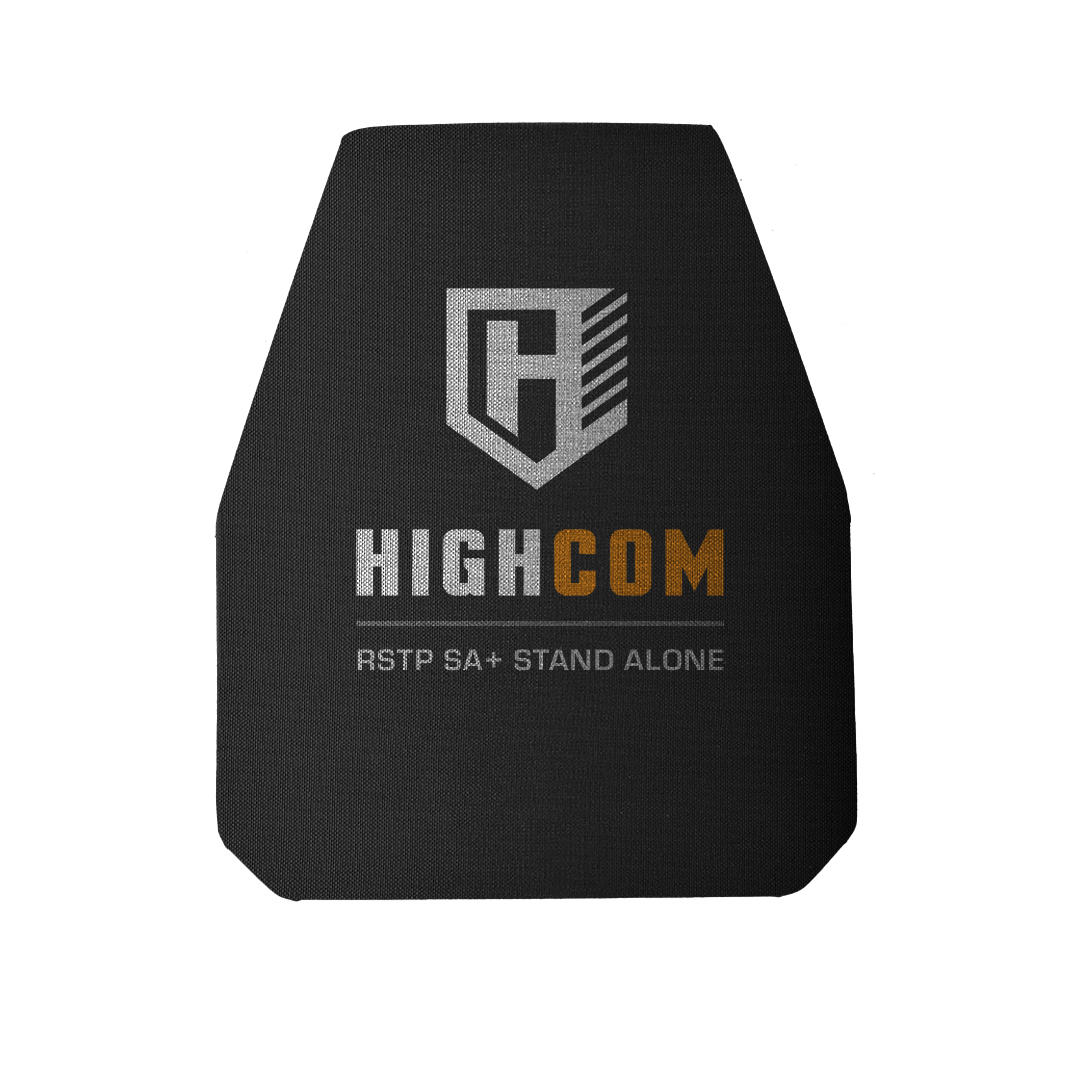

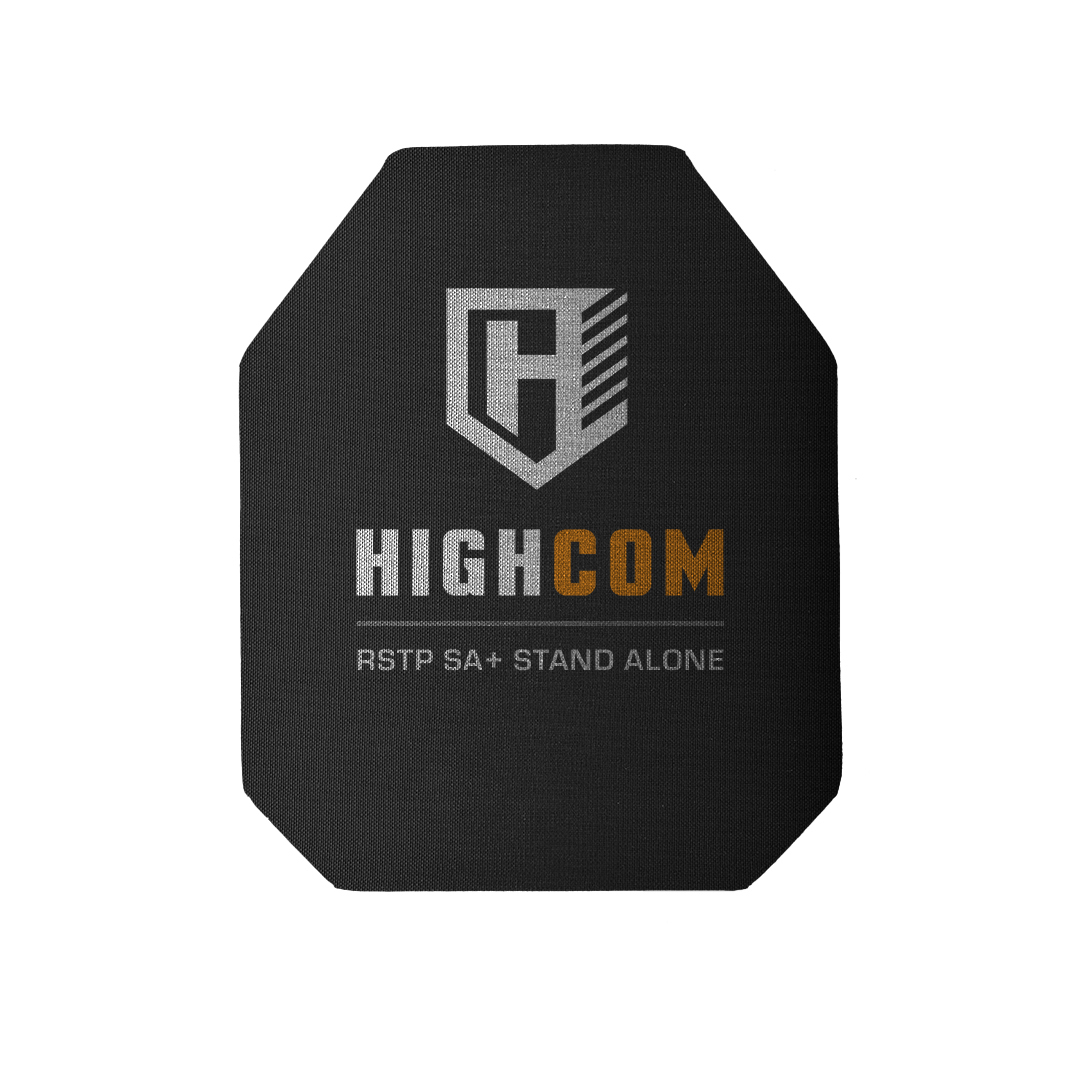

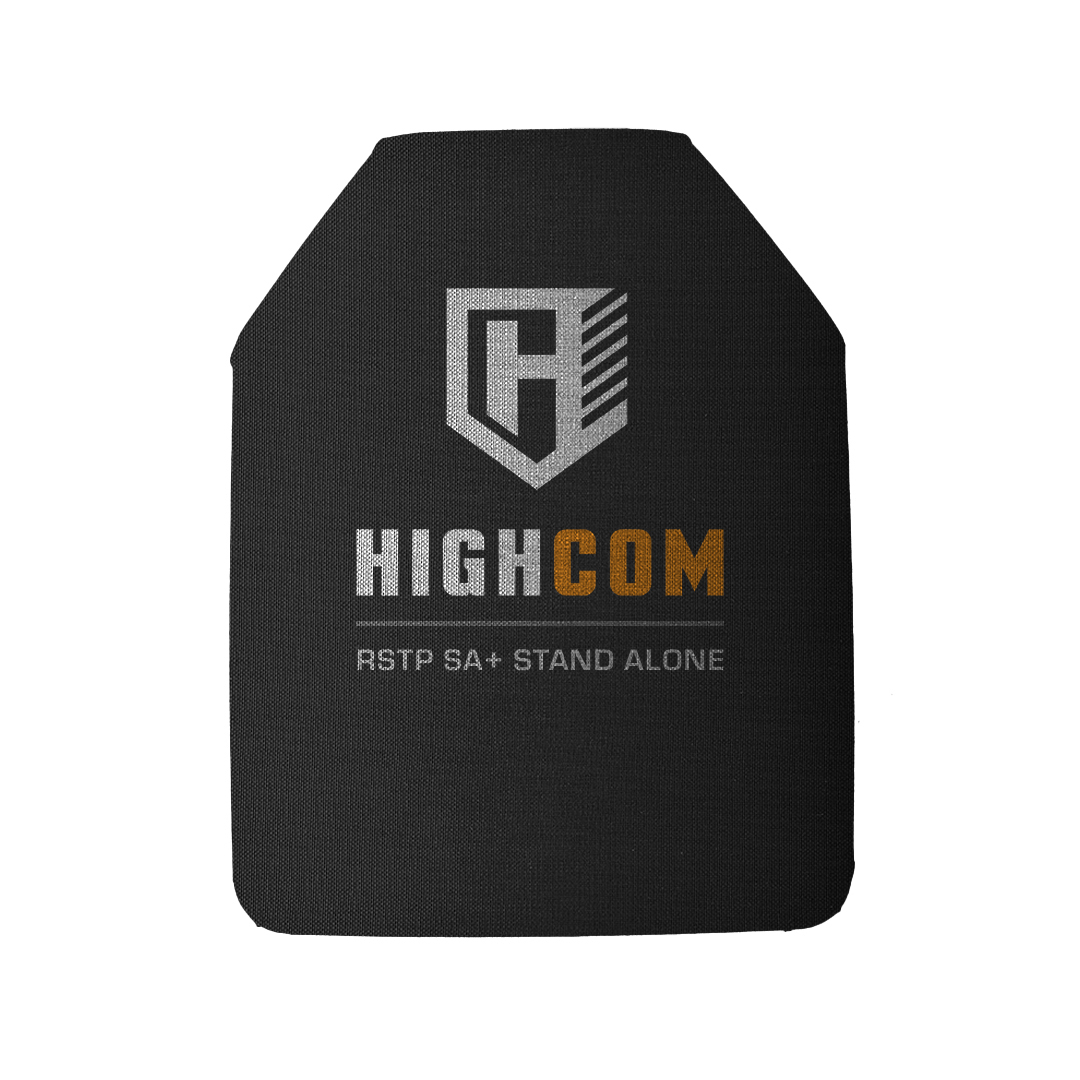

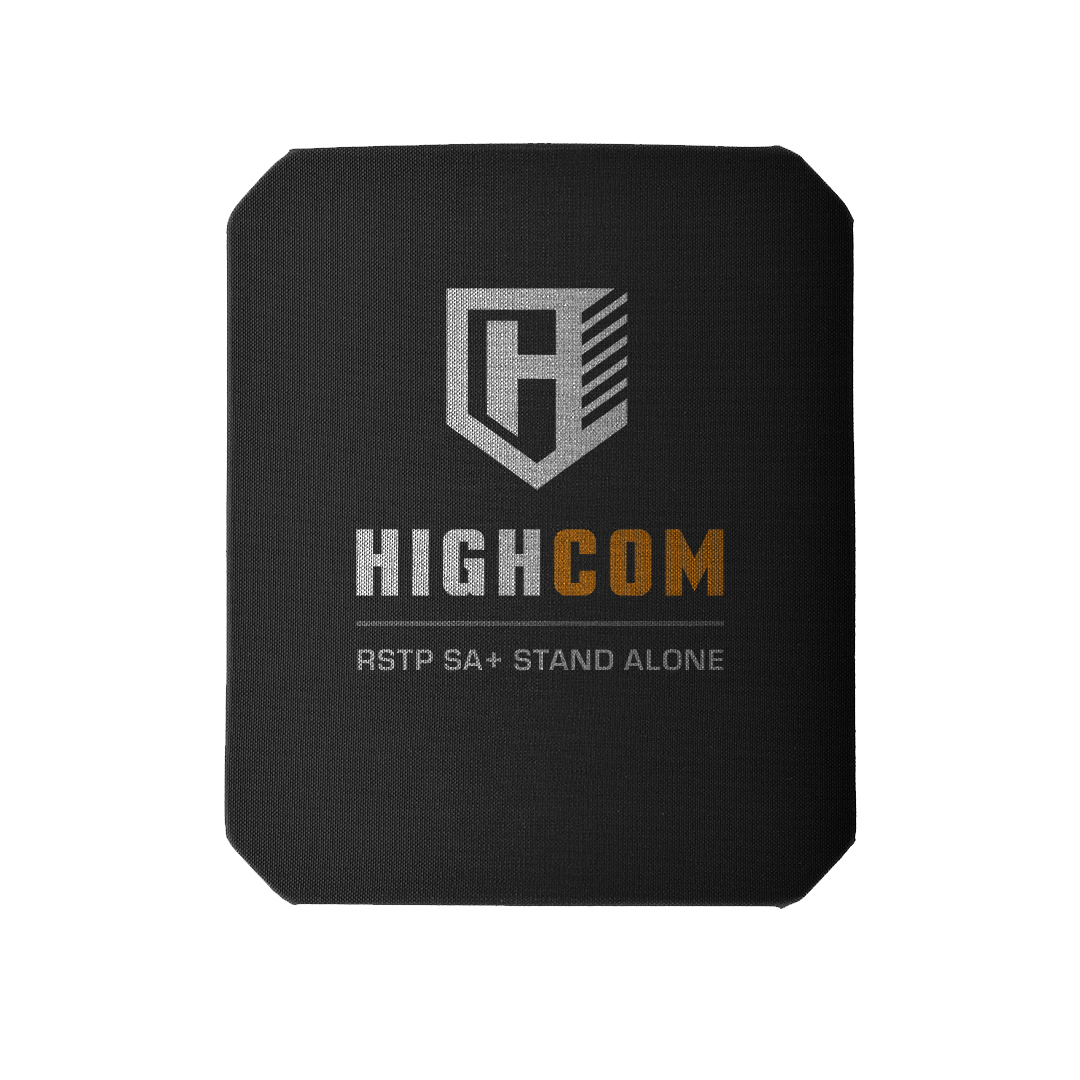

- Cut: Available in Shooters, Swimmers, SAPI, and Full (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
- Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship
SIZE & WEIGHT
| Size | Curvature | Cut | Weight |
|---|---|---|---|
| 5 x 7 | Single Curve | Full | 1.5 lbs / 0.66 kg |
| 5 x 8 | Single Curve | Full | 1.7 lbs / 0.76 kg |
| 6 x 6 | Single Curve | Full | 1.4 lbs / 0.63 kg |
| 6 x 8 | Single Curve | Full | 2 lbs / 0.89 kg |
| 8 x 10 | Single Curve | Full | 3.3 lbs / 1.47 kg |
| 8 x 10 | Single Curve | Shooters | 3.2 lbs / 1.43 kg |
| 10 x 12 | Single Curve | Full | 4.8 lbs / 2.19 kg |
| 10 x 12 | Single Curve | Shooters | 4.1 lbs / 1.85 kg |
| 10 x 12 | Single Curve | Swimmers | 4.3 lbs / 1.93 kg |
| 10 x 12 | Muti Curve | Shooters | 4.1 lbs / 1.85 kg |
| 7.25 x 11.5 | Muti Curve | SAPI (XS) | 3.4 lbs / 1.54 kg |
| 8.75 x 11.75 | Muti Curve | SAPI (S) | 4.2 lbs / 1.92 kg |
| 9.5 x 13.25 | Muti Curve | SAPI (M) | 4.9 lbs / 2.22 kg |
| 10 x 13.25 | Muti Curve | SAPI (L) | 5.6 lbs / 2.56 kg |
| 11 x 14 | Muti Curve | SAPI (XL) | 6.4 lbs / 2.93 kg |
BALLISTIC ROUNDS TESTED
| Protection | Standard | Weapon | Projectile | GR | VEL FT/S | VEL M/S | (+/- ft/s) |
|---|---|---|---|---|---|---|---|
| SA | NIJ 0101.06 | Rifle | 7.62 mm FMJ, Steel Jacketed Bullets (M80) | 147 | 2780 | 847 | (+/- 30) |
| SA | DEA 2017 | Rifle | 7.62 x 39mm Mild Steel Core | 123 | 2400 | 731 | (+/- 50) |
| SA | Special | Rifle | 5.56 x 45mm M855 (Green Tip) | 62 | 3100 | 945 | (+/- 50) |
| SA | Special | Rifle | 5.56 x 45mm M193 | 55 | 3250 | 991 | (+/- 50) |
