Description

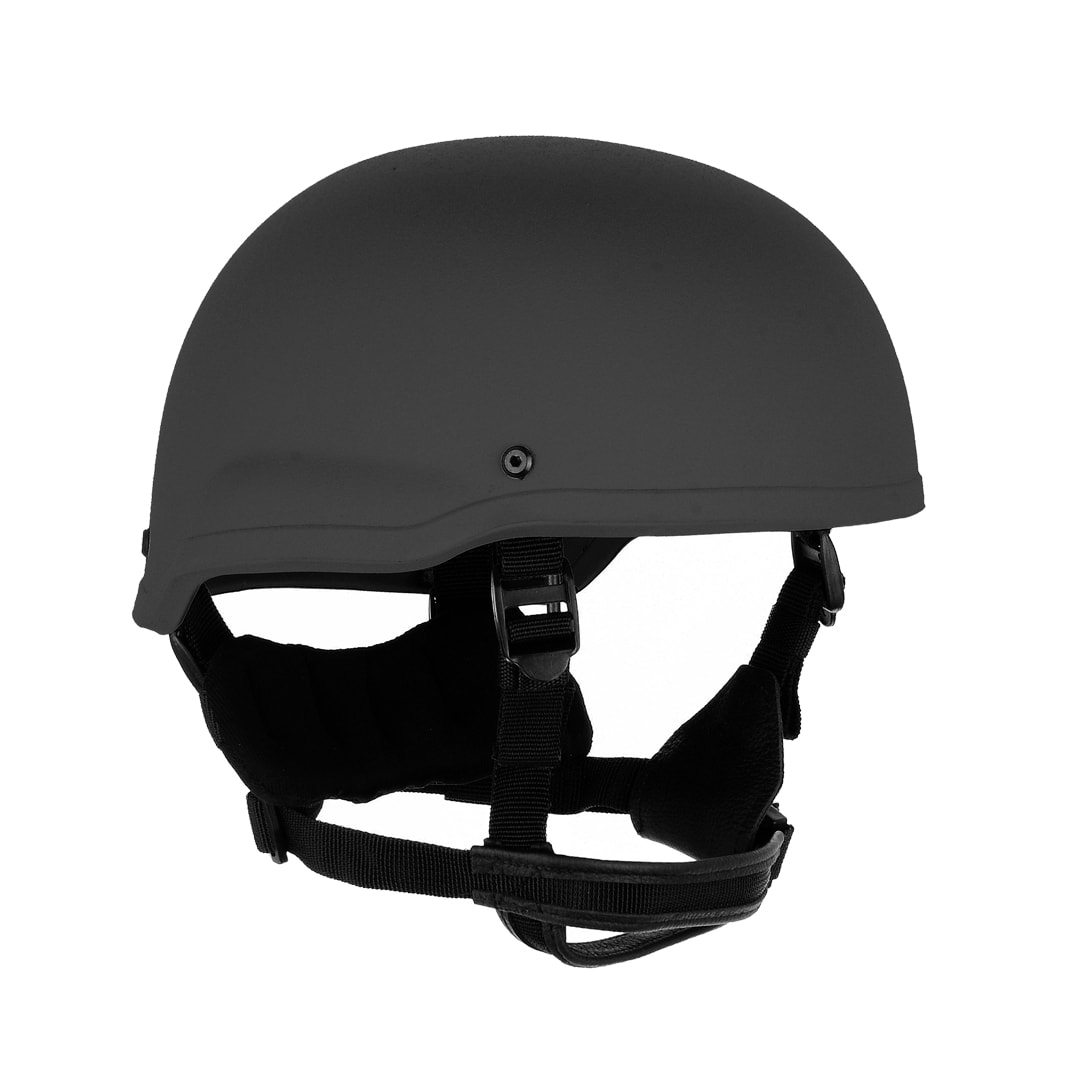

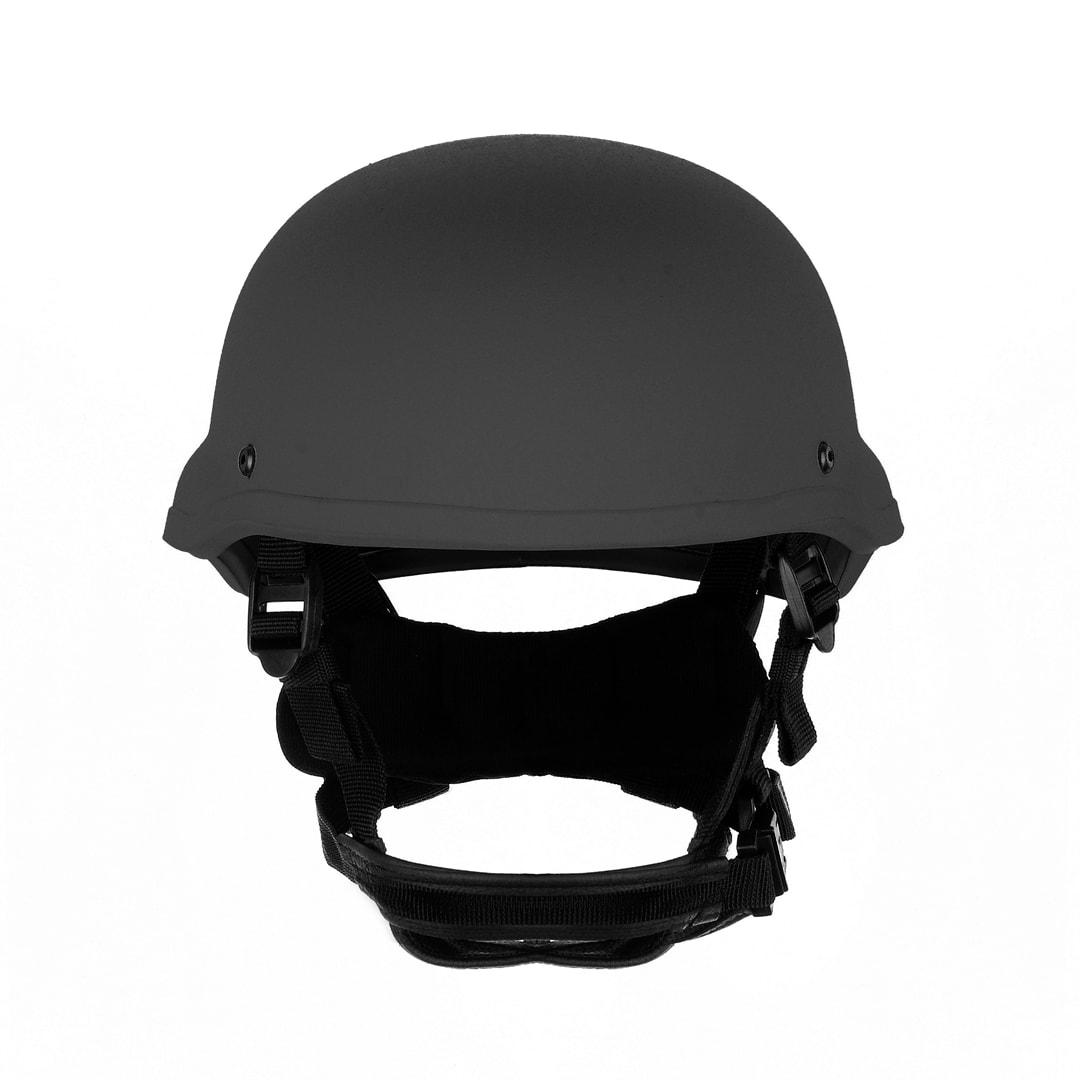

Advanced Combat Helmet Level IIIA Mid Cut
SPECIFICATIONS
- Protection: Level IIIA including frag protection
- NIJ Standard 0106.01 TESTED: This product has been independently tested by an NVLAP accredited NIJ approved laboratory to meet or exceed ballistic resistance as specified under NIJ Standard 0106.01
- MIL-STD 662F: This product has been independently tested by an NVLAP accredited NIJ approved laboratory against FRAG resistance as specified under MIL-STD 662F
- Materials: Hybridized Kevlar® fibers and UHMWPE Spectra® shell construction
- Head Protection: Front, back, crown, and side of the head
- Weight Tolerance: +/- .15lbs / .068kg
- Adjustable Harness: Multiple harness options, comes standard with 4 pt harness
- Padding: D3O TRUST Stealth™ 7 pad helmet system
- Sizing: Circumference is measured around the head, similar to hat sizing. All sizes are measured in inches. If a measurement falls on a dividing line between sizes, select the larger of the two sizes to ensure maximum ballistic protection.
- Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship

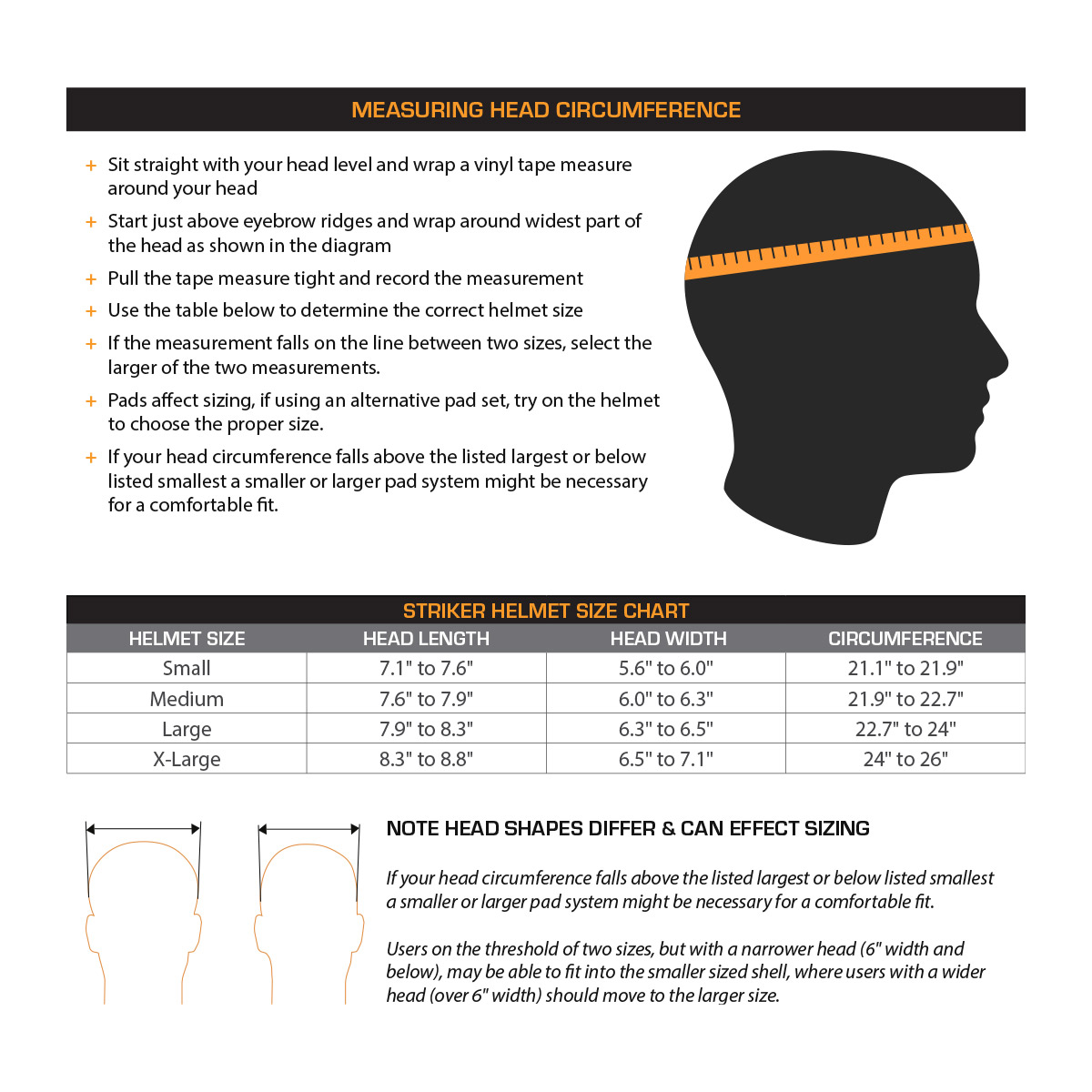

SIZE CHART
| Size | Length | Width | Circumference | Weight |
|---|---|---|---|---|
| S | 7.1″ to 7.6″ | 5.6″ to 6.0″ | 21.1″ to 21.9″ | 1.8 lbs / .82 kg |
| M | 7.6″ to 7.9″ | 6.0″ to 6.3″ | 21.9″ to 22.7″ | 1.9 lbs / .89 kg |
| L | 7.9″ to 8.3″ | 6.3″ to 6.5″ | 22.7″ to 24″ | 2 lbs / .94 kg |
| XL | 8.3″ to 8.8″ | 6.5″ to 7.1″ | 24″ to 26″ | 2.2 lbs / 1 kg |
NIJ 0106.01 THREATS
| STANDARD | WEAPON | PROJECTILE | GR | Vel ft/s | Vel m/s | (+/- ft/s) | (+/- m/s) |
|---|---|---|---|---|---|---|---|
| NIJ 0106.01 | Handgun | .357 Magnum Jacketed Soft Point (JSP) | 158 | 1395 | 425 | (+/- 50) | (+/- 15) |
| NIJ 0106.01 | Handgun | 9mm Full Metal Jacketed Round Nose (FMJ RN) | 124 | 1400 | 427 | (+/- 30) | (+/- 9) |
| NIJ 0106.01 | Handgun | .44 Magnum Semi Jacketed Hollow Point (SJHP) | 240 | 1400 | 427 | (+/- 30) | (+/- 9) |
MIL-STD 662F FRAG THREATS
| STANDARD | WEAPON | PROJECTILE | GR | Vel ft/s | Vel m/s | V50 in ft/s | V50 in m/s |
|---|---|---|---|---|---|---|---|
| MIL-STD-662F | Frag | US MIL-STD Frag 2 gr. RCC | 2 | 4200 | 1280 | 4415 | 1346 |
| MIL-STD-662F | Frag | US MIL-STD Frag 4 gr. RCC | 4 | 3475 | 1059 | 3211 | 979 |
| MIL-STD-662F | Frag | US MIL-STD Frag 16 gr. RCC | 16 | 2475 | 754 | 2346 | 715 |
| MIL-STD-662F | Frag | US MIL-STD Frag 64 gr. RCC | 64 | 1750 | 533 | 1755 | 535 |
| MIL-STD-662F | Frag | US MIL-STD Frag 17 gr. FSP | 17 | 2200 | 671 | 2221 | 677 |
Product Resources
Striker ACHMC Product Spec
106 KB Download
Striker Helmet Overview
External file Download
Striker Helmets Threat Chart
External file Download
